Nissan-Datsun
>>
2014
>>
Juke SL, FWD, Standard Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Horns
>>
Removal And Installation
>>
Horn
>>
Exploded View
Exploded View

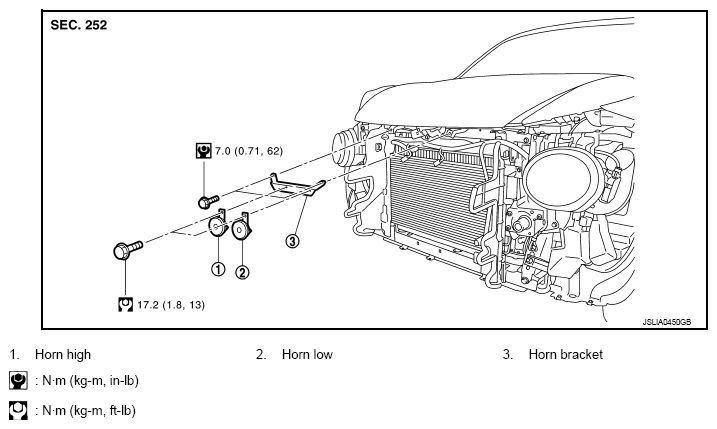

Fig 1: Horn High, Horn Low And Horn Bracket With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
