Exploded View: Disassembly

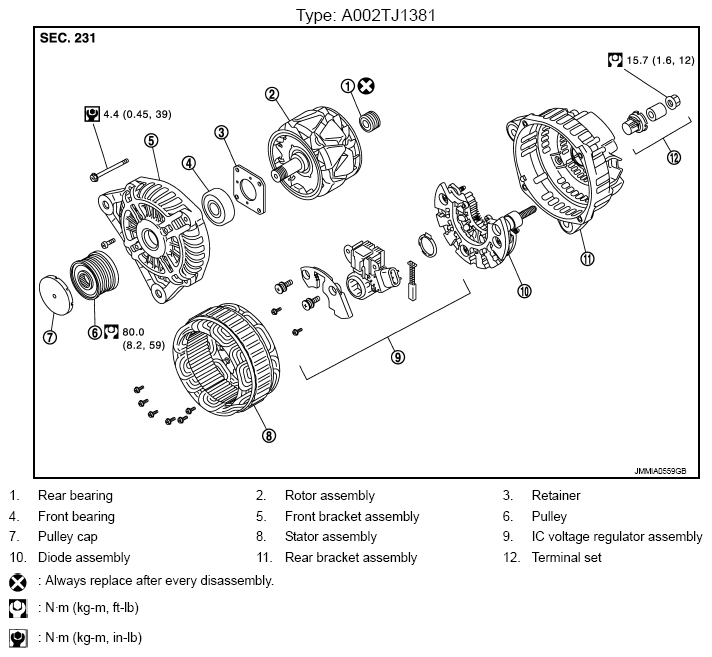

Fig 1: Disassembled View Of Alternator (Type A002TJ1381) With Torque Specifications

G09245843

Courtesy of NISSAN NORTH AMERICA, INC.
