Nissan-Datsun
>>
2014
>>
Juke SL, FWD, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Wiring Diagram
>>
CVT Control System
>>
Connector End Views
Connector End Views

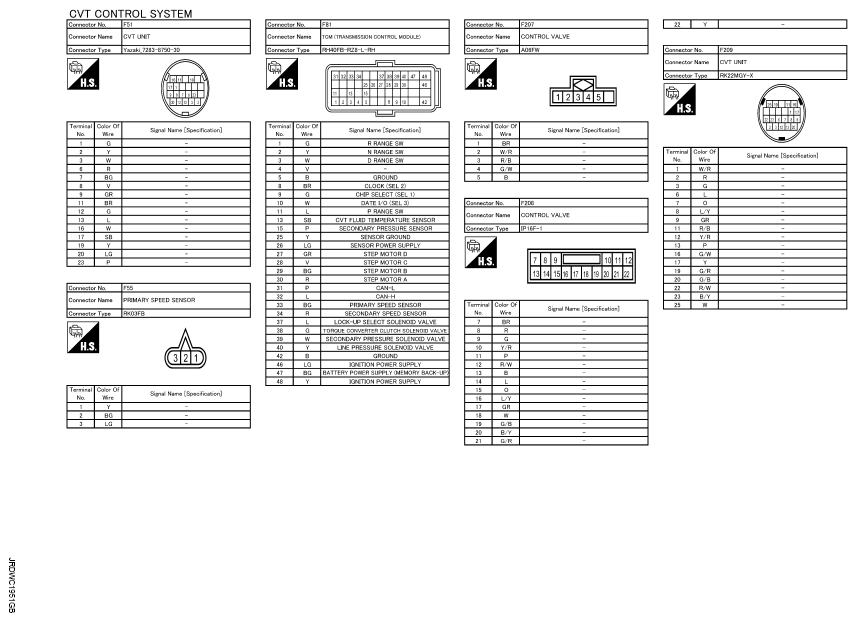

Fig 1: CVT Control System Connector End Views (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

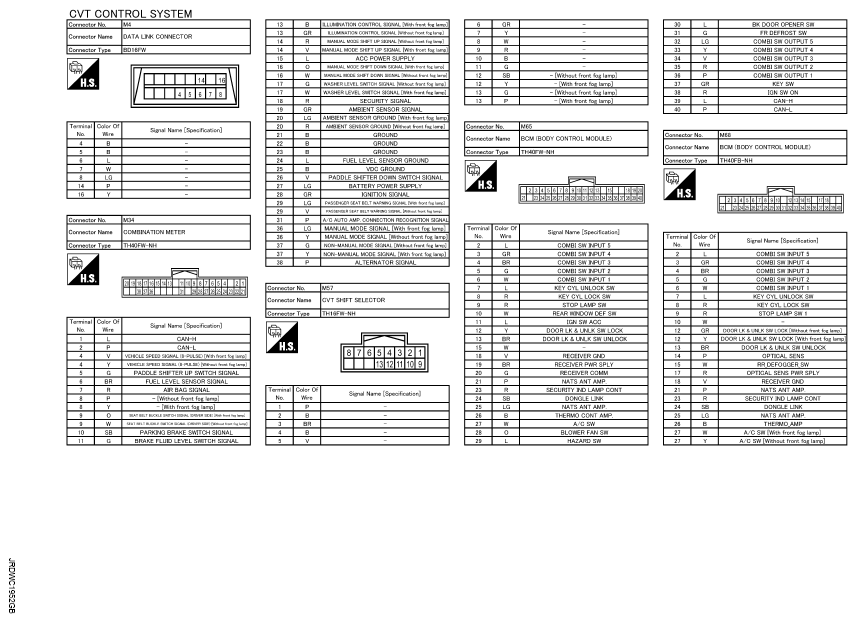

Fig 2: CVT Control System Connector End Views (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

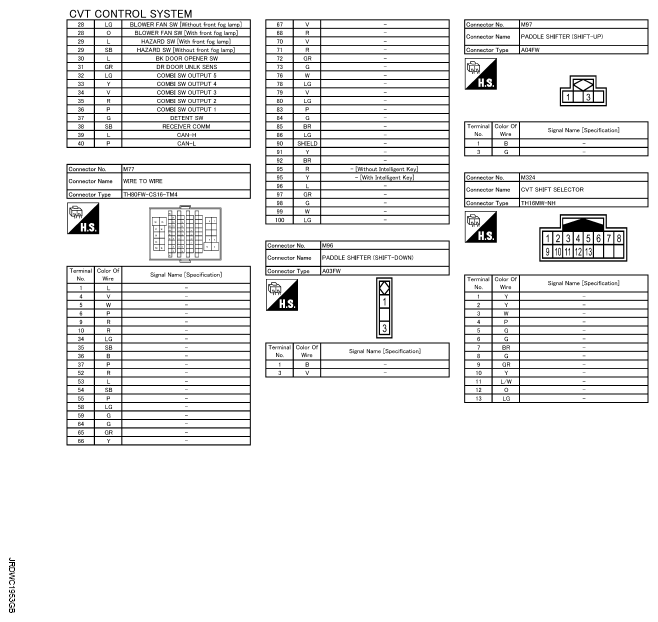

Fig 3: CVT Control System Connector End Views (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

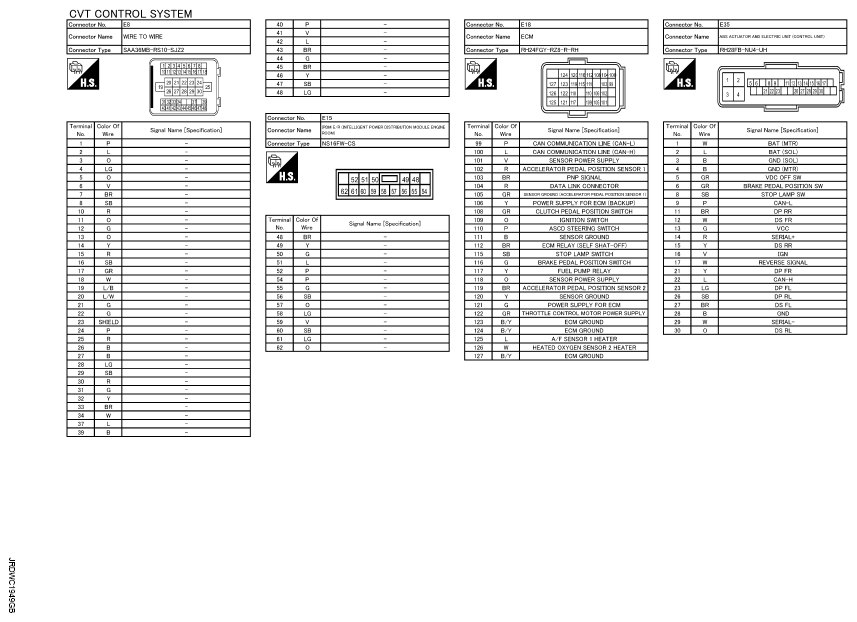

Fig 4: CVT Control System Connector End Views (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

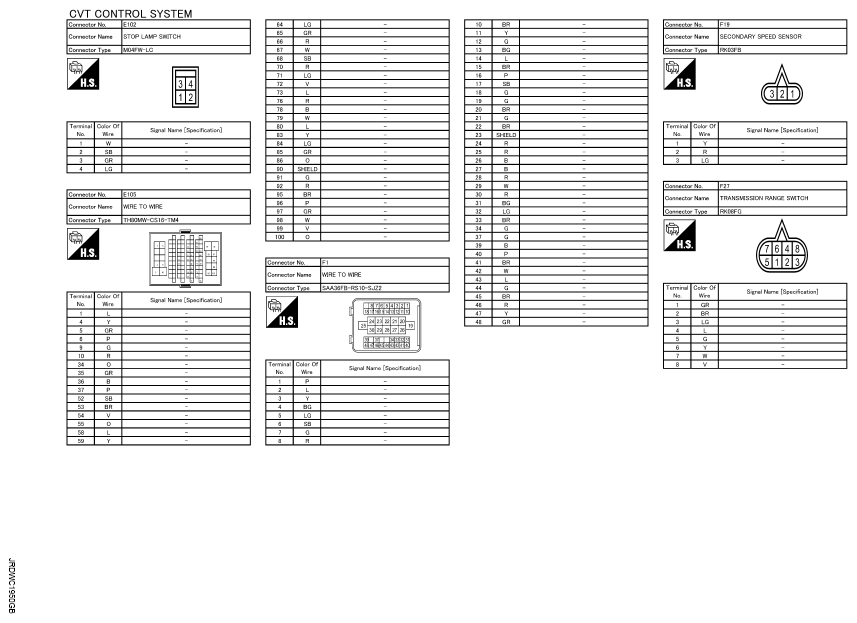

Fig 5: CVT Control System Connector End Views (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
