AWD: Exploded View
AWD: Exploded View

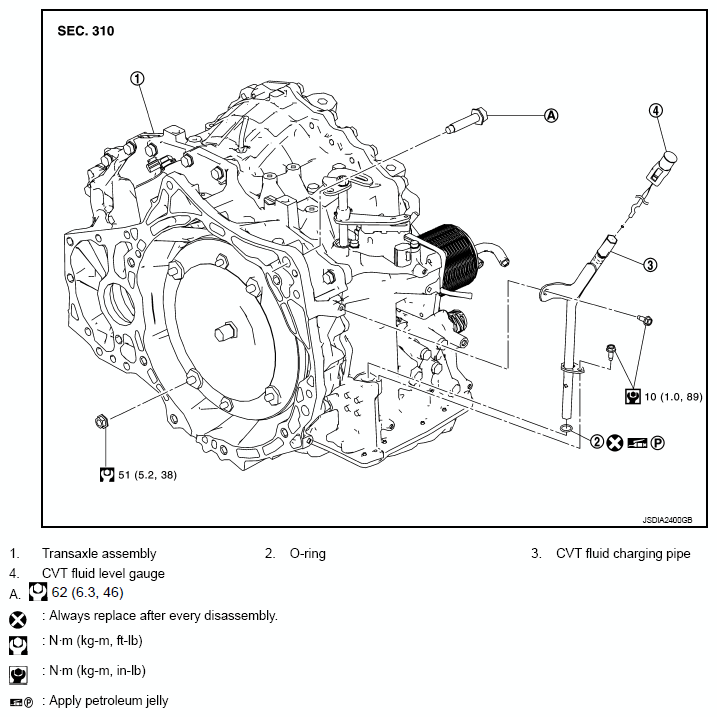

Fig 1: AWD With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
