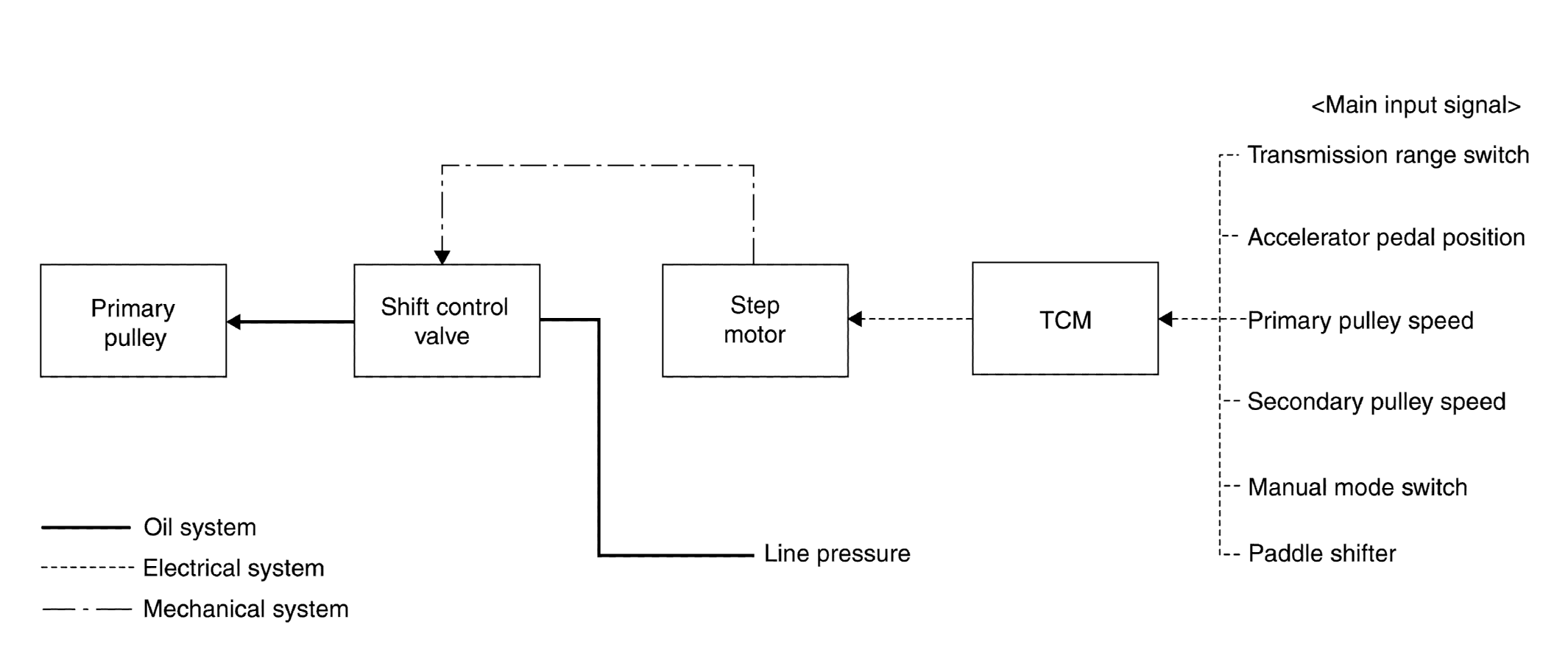

SHIFT CONTROL SYSTEM: System Diagram

Fig 1: Primary Pulley Speed Versus Vehicle Speed Graph
G09243992Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
  • The gear ratio is set for each position separately.
  • Paddle shifter is applied to NISMO RS models.
