OIL PRESSURE CONTROL SYSTEM: System Diagram

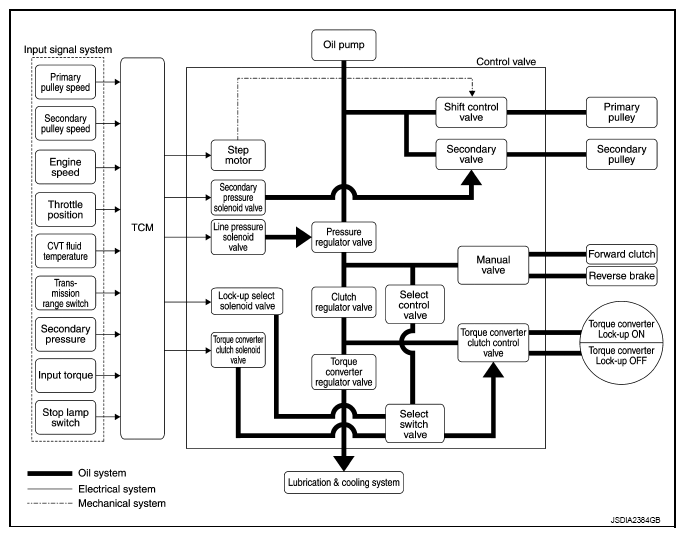

Fig 1: Control - System Diagram

G09243987

Courtesy of NISSAN NORTH AMERICA, INC.
