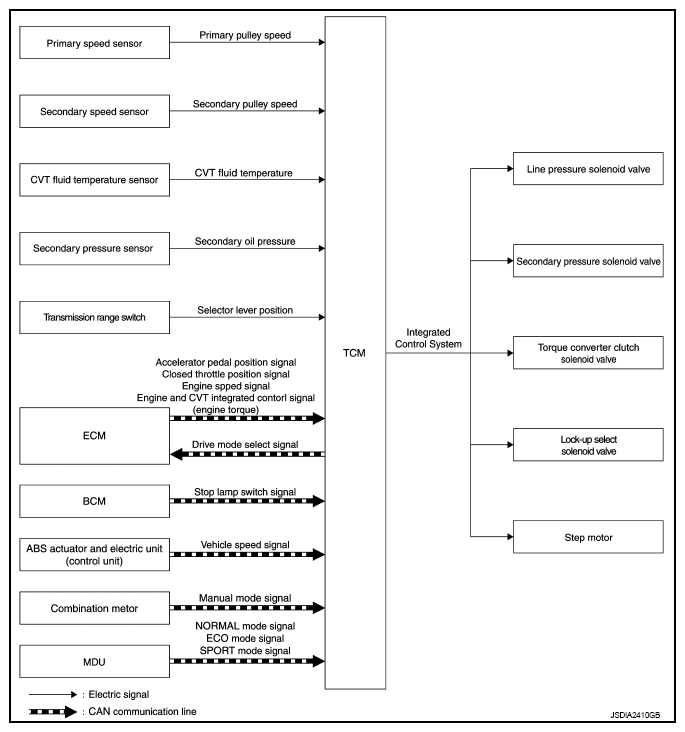

INTEGRATED CONTROL SYSTEM: System Diagram

Fig 1: Identifying Integrated Control System: System Diagram

G09243999

Courtesy of NISSAN NORTH AMERICA, INC.
