CONTROL SYSTEM: System Diagram
CONTROL SYSTEM: System Diagram

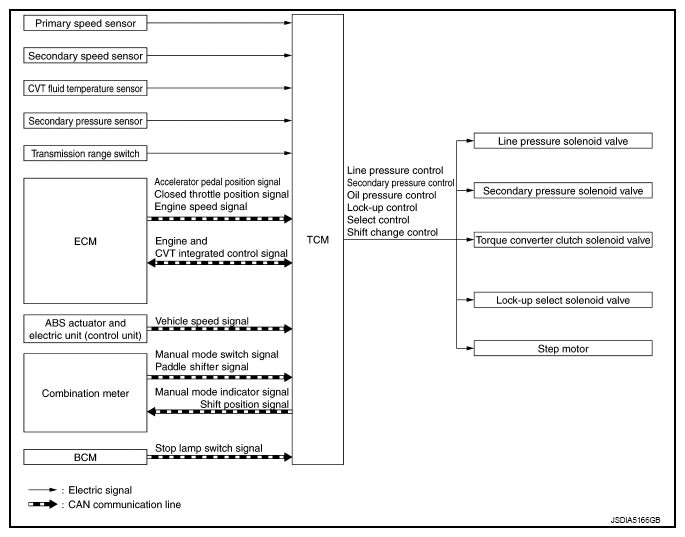

Fig 1: Identifying Control System: System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Paddle shifter is applied to NISMO RS models.
Courtesy of NISSAN NORTH AMERICA, INC.
