CVT CONTROL SYSTEM: System Diagram

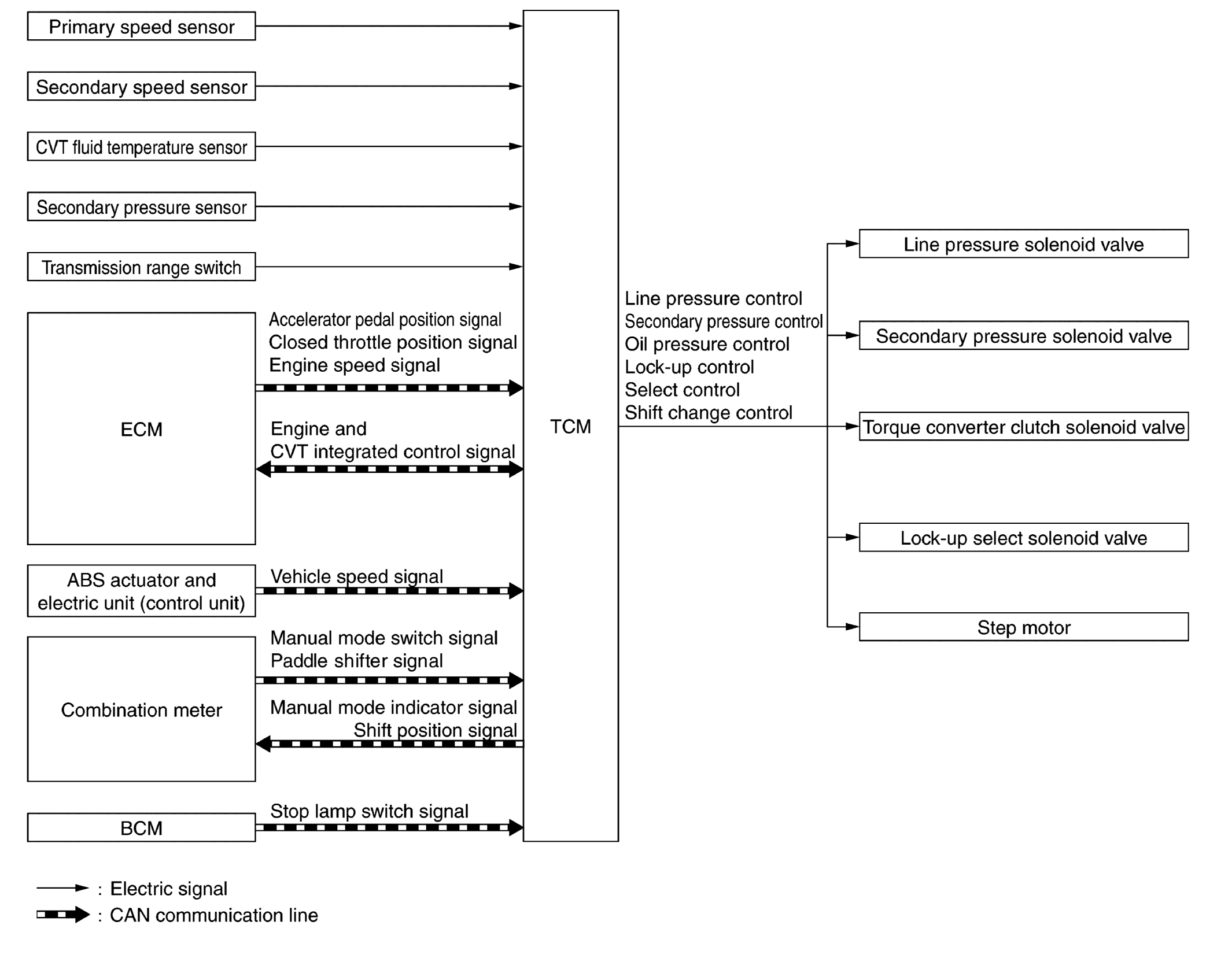

Fig 1: Line Pressure And Secondary Pressure Control Function Diagram

G09243986

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Paddle shifter is applied to NISMO RS models.
