Juke SL, FWD, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Removal And Installation
>>
Water Hose
>>
Exploded View
Exploded View

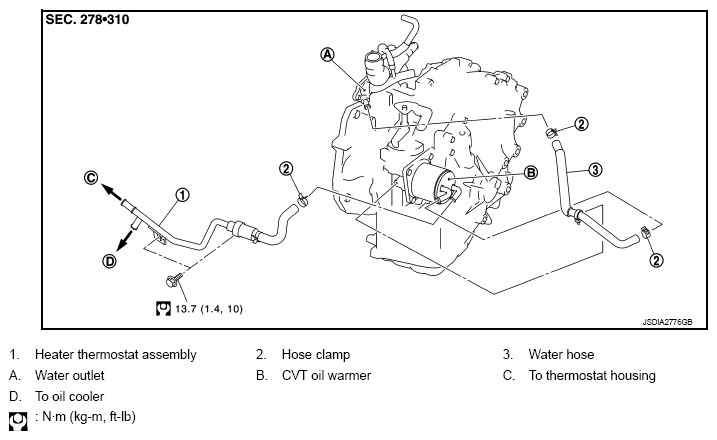

Fig 1: Water Hose With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
