Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

• From below the vehicle, press the grommet (A) into place until the pawls (B) make a click sound.
  CAUTION:

  • Place the grommet on the floor, then fasten it in place from below the vehicle.
  • Check that pulling down on the grommet does not disconnect it.

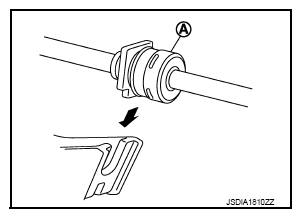

    Fig 1: Identifying Grommet (A) Into Place Until The Pawls (B)

    Courtesy of NISSAN NORTH AMERICA, INC.
• Pay attention to the following when connecting the control cable to the CVT shift selector.

1. When connecting the control cable (1) to the CVT shift selector assembly (2), face the grooved surface of the rib (A) up and insert the control cable until it stops.
   Fig 2: Identifying Control Cable (1) To The Cvt Shift Selector Assembly (2), Face The Grooved Surface Of The Rib (A)

   Courtesy of NISSAN NORTH AMERICA, INC.
2. Install the socket (A) onto the CVT shift selector.
   CAUTION:

   • Place the socket onto the CVT shift lever, then fasten it in place from above.
   • Check that the pulling on the socket does not disconnect it.

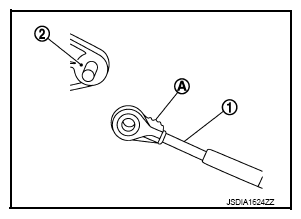

   Fig 3: Identifying Socket (A) Onto The Cvt Shift Selector

   Courtesy of NISSAN NORTH AMERICA, INC.
