2WD Models

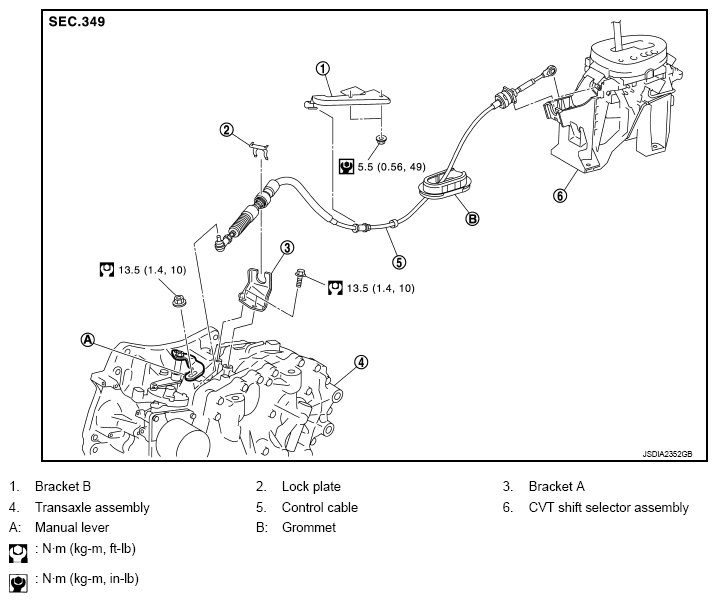

Fig 1: Control Cable With Torque Specifications

G09244056

Courtesy of NISSAN NORTH AMERICA, INC.
