Juke SL, FWD, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Removal And Installation
>>
Front Seat
>>
Exploded View
>>
Driver Seat
Driver Seat

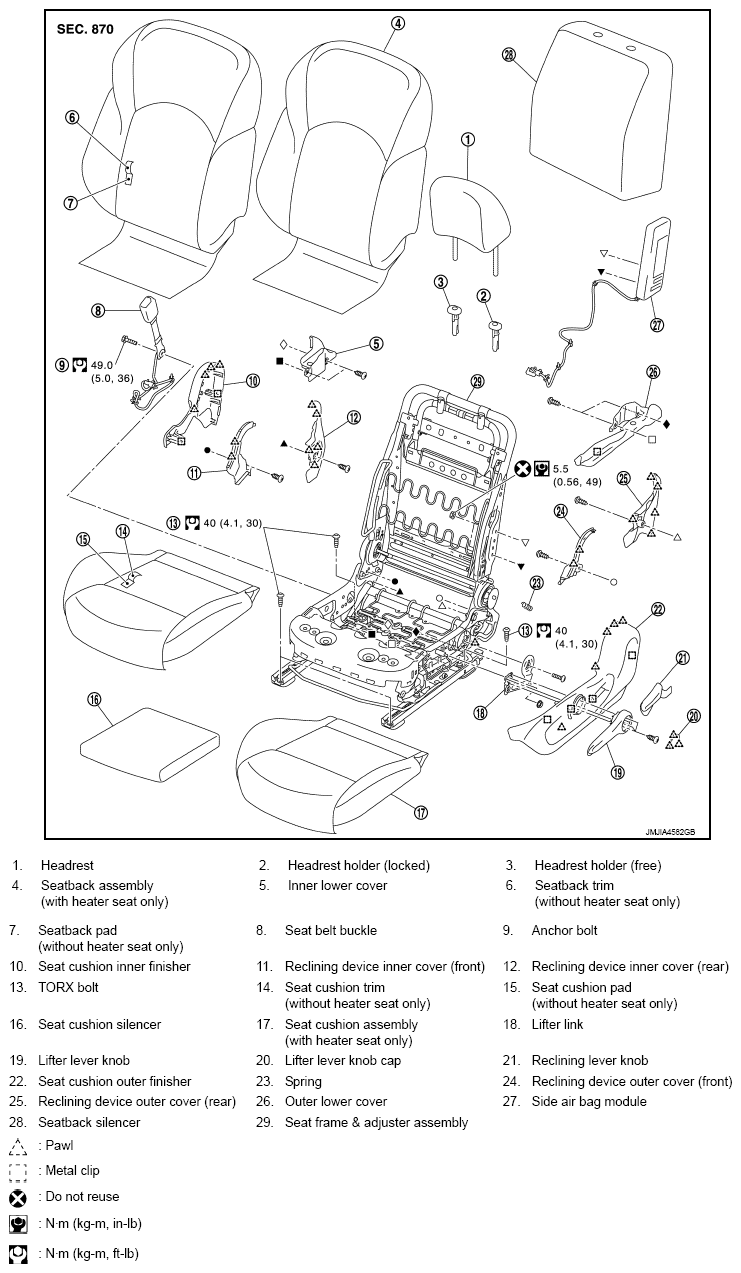

Fig 1: Exploded View Of Front Seat (Driver Seat) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
