Integrated Control System: Wiring Diagram

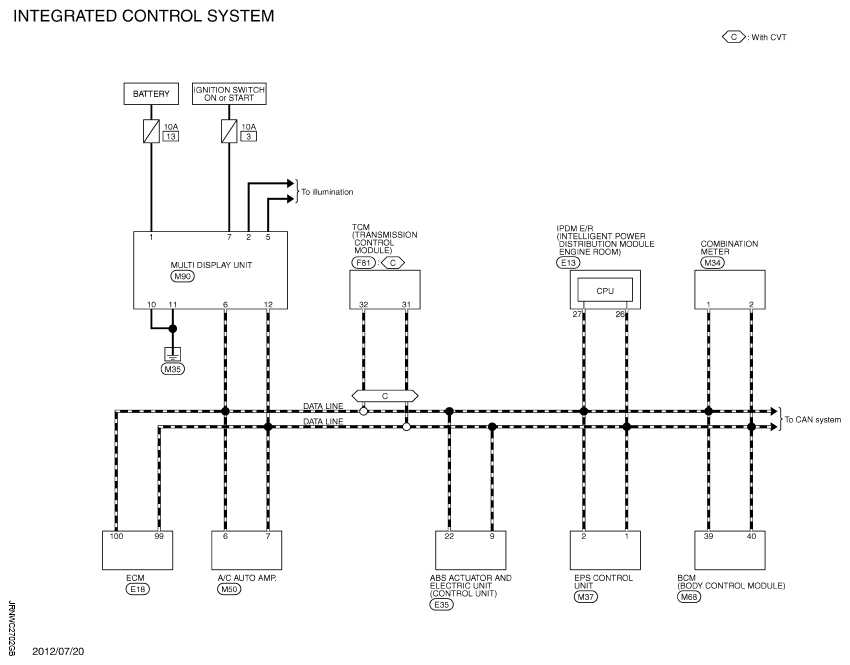

Fig 1: Integrated Control System Wiring Diagram

G09246026

Courtesy of NISSAN NORTH AMERICA, INC.
