Exploded View

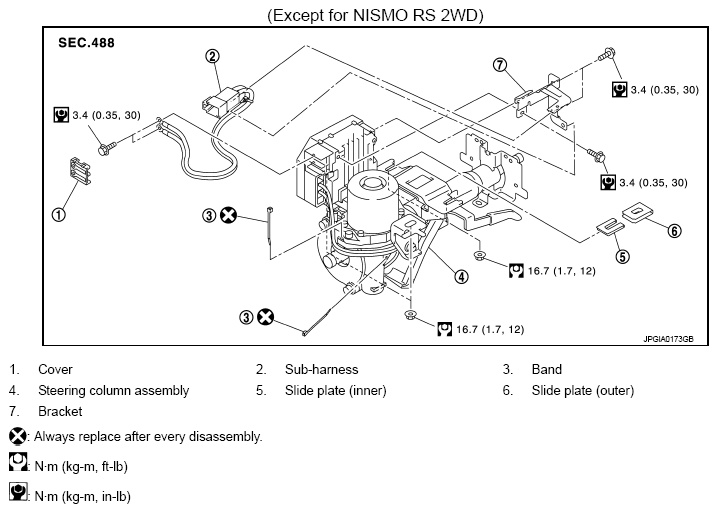

Fig 1: Exploded View Of Steering Column (Except For NISMO RS 2WD) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

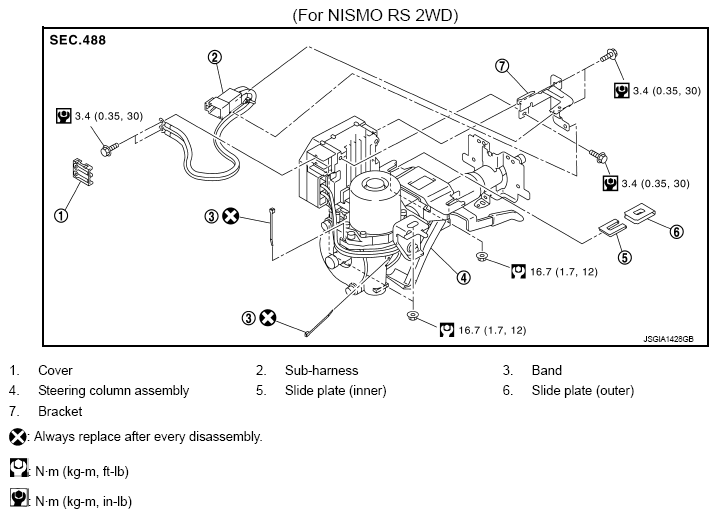

Fig 2: Exploded View Of Steering Column (For NISMO RS 2WD) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.
