AIR CONDITIONING CUT CONTROL: System Diagram

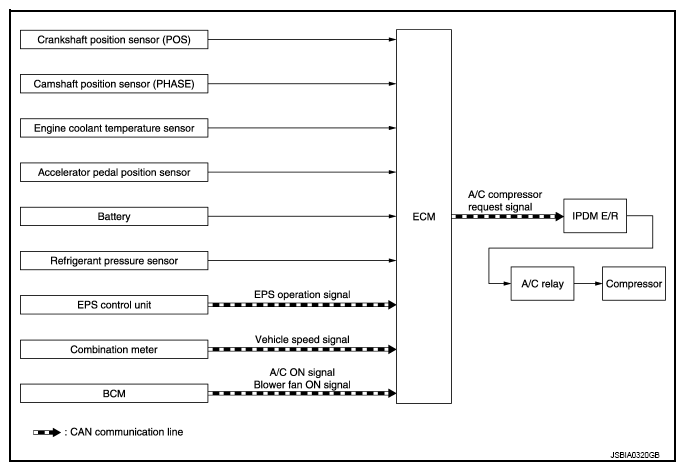

Fig 1: Air Conditioning Cut Control - System Diagram

G09246168

Courtesy of NISSAN NORTH AMERICA, INC.
