When a DTC is stored in ECM

When a DTC is stored in ECM and MIL is ON, a permanent DTC is erased with MIL shut-off if the same malfunction is not detected after performing the driving pattern for MIL shut-off three times in a raw.

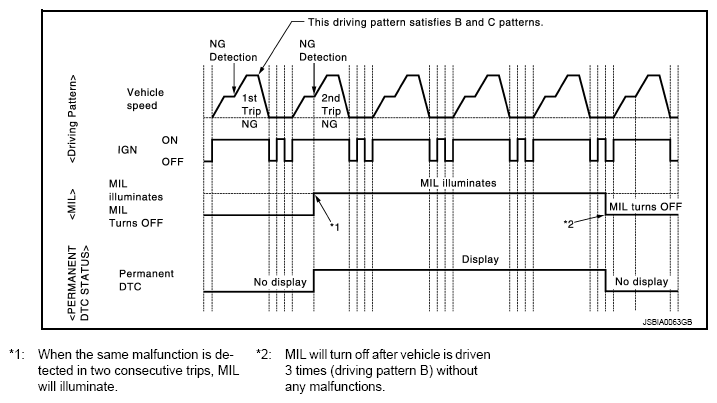

Fig 1: permanent DTC Status, MIL Driving Pattern

Courtesy of NISSAN NORTH AMERICA, INC.
