LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2014
>>
Juke SL, 4WD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Fuel System
>>
Removal And Installation
>>
EVAP Canister
>>
2WD
>>
2WD: Exploded View
2WD: Exploded View

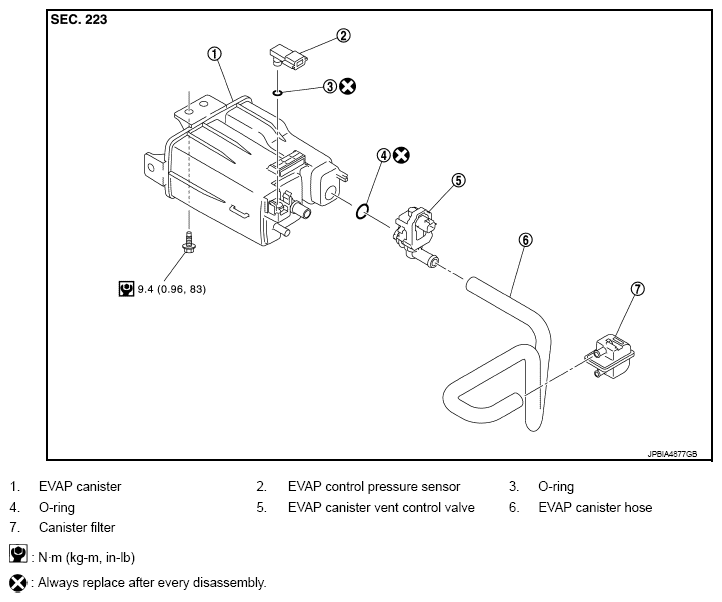

Fig 1: Exploded View Of EVAP Canister (2WD) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
