Exploded View: Disassembly

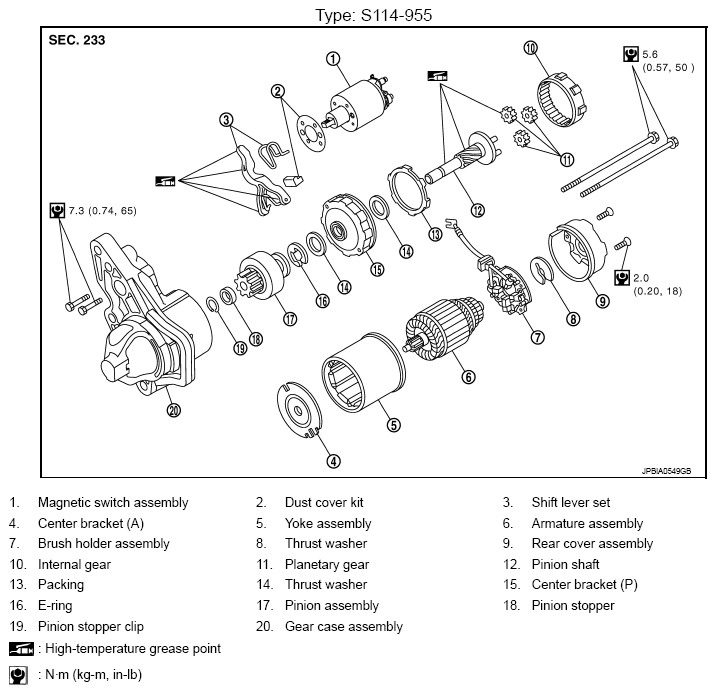

Fig 1: Disassembled View Of Starter Motor (Type S114-955) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the starter.
