Power Control System (Power Distribution System)
>>
Wiring Diagram
>>
Power Distribution System
>>
Connector End Views
Connector End Views

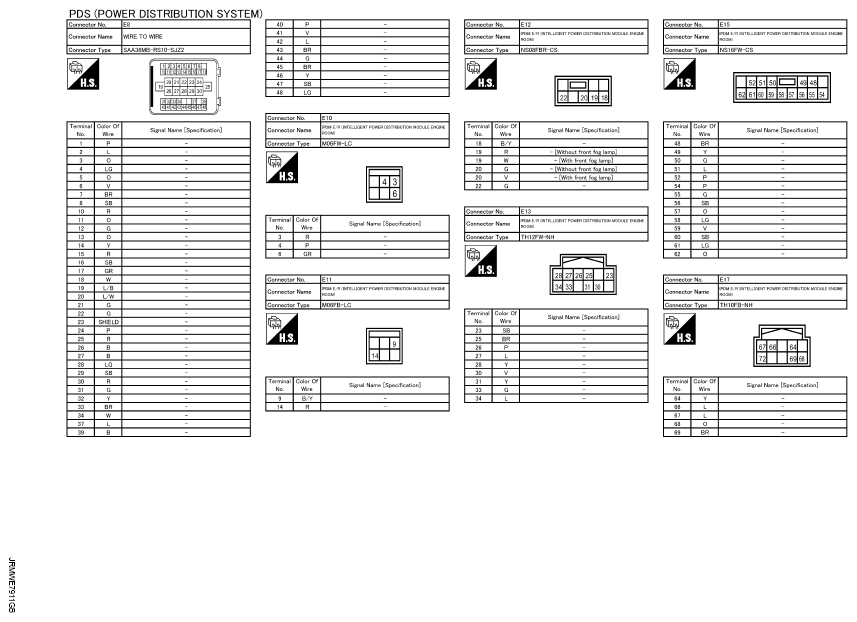

Fig 1: Power Distribution System Connector End Views (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

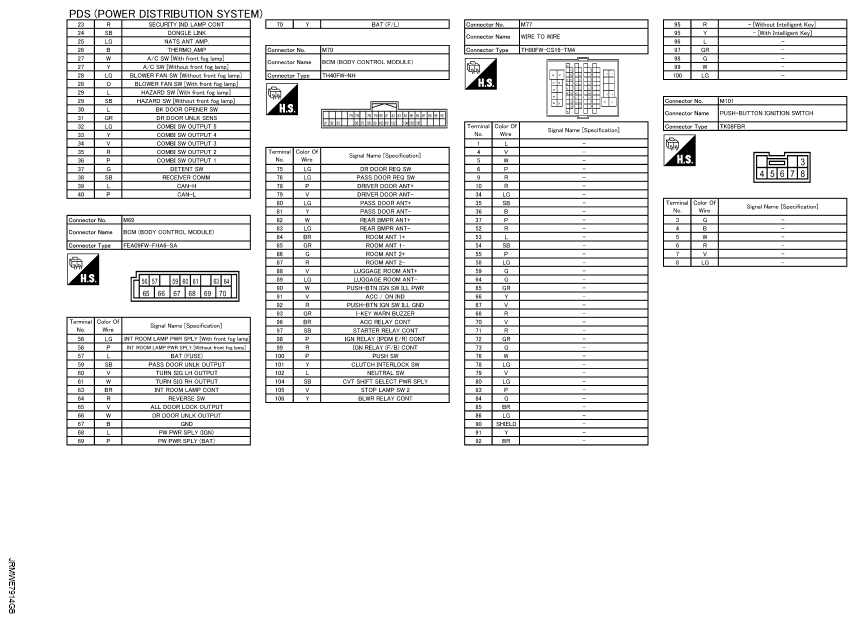

Fig 2: Power Distribution System Connector End Views (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

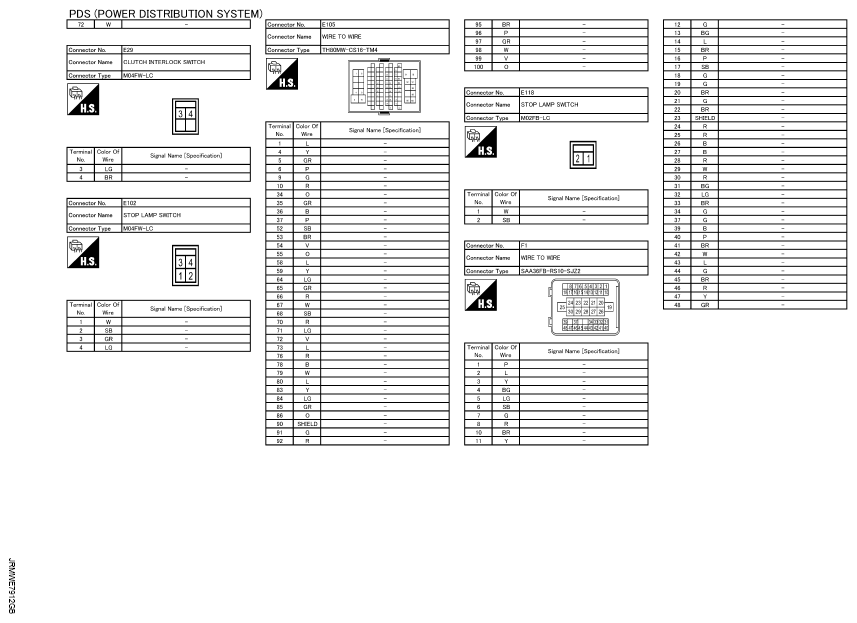

Fig 3: Power Distribution System Connector End Views (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

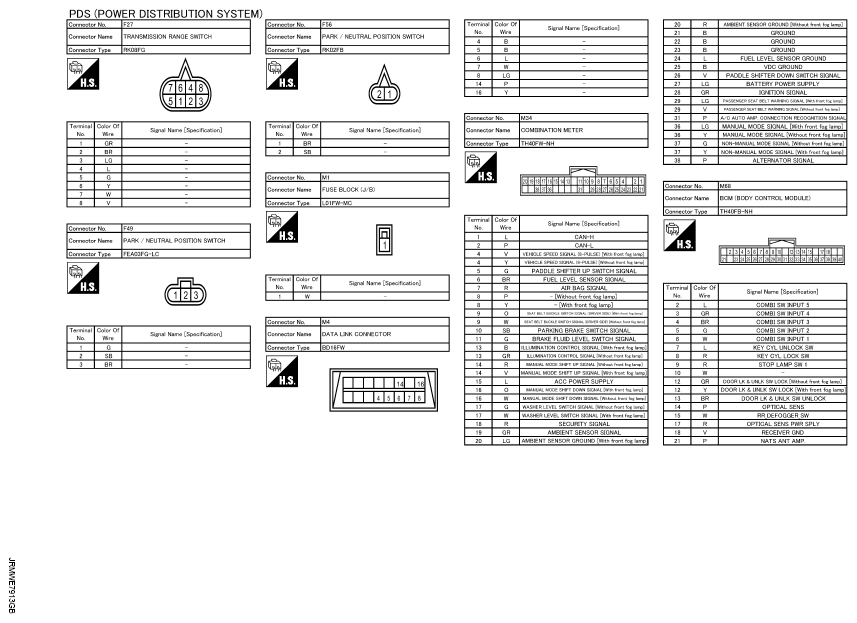

Fig 4: Power Distribution System Connector End Views (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
