Drive Pinion: Assembly

  1. Select drive pinion adjusting shim. Refer to "ADJUSTMENT ".
  2. Install selected drive pinion adjusting shim to transfer case.
  3. Install outer race of pinion bearing (rear) to the transfer case with the drift (A) [SST: ST37830000 (-)].
    CAUTION:
    • Never reuse pinion bearing.
    • Apply gear oil to the pinion bearing.

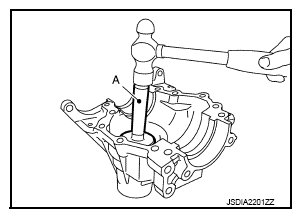

    Fig 1: Installing Rear Pinion Bearing Outer Race Using Drift
    G09244227Courtesy of NISSAN NORTH AMERICA, INC.
  4. Install inner race of pinion bearing (front) to drive pinion with the drift (A) [SST: ST35272000 (J-26092)].
    CAUTION:
    • Never reuse pinion bearing.
    • Apply gear oil to the pinion bearing.
  5. Assemble inner race of pinion bearing (rear) into the transfer case.
    CAUTION:
    • Never reuse pinion bearing.
    • Apply gear oil to the pinion bearing.

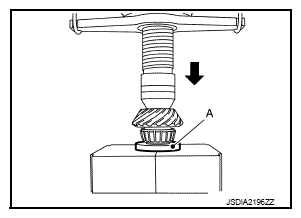

    Fig 2: Installing Inner Race Of Front Pinion Bearing Using Drift
    G09244228Courtesy of NISSAN NORTH AMERICA, INC.
  6. Using the drifts (A) (Commercial service tool), install drive pinion oil seal (1) to transfer case within the dimension (L) shown as follows.

    L: 0 - 0.6 mm (0 - 0.024 in)

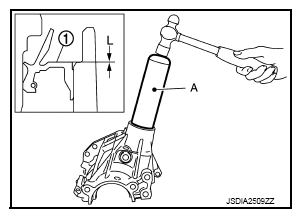

    Fig 3: Installing Drive Pinion Oil Seal To Transfer Case Using Drifts
    G09244229Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Never reuse oil seal.
    • When installing, never incline oil seal.
    • Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference.
  7. Assemble a collapsible spacer onto the drive pinion.
    CAUTION: Never reuse the collapsible spacer.
  8. Assemble drive pinion assembly into the transfer case, and then install companion flange to drive pinion.
    NOTE: Align matching marks (A) on the thread edge of drive pinion and companion flange, and install companion flange if drive pinion is reused.

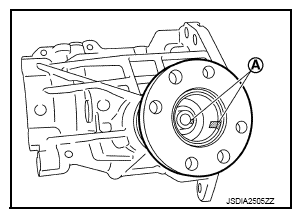

    Fig 4: Identifying Matching Marks On Screw Ends Of Drive Pinion And Companion Flange
    G09244230Courtesy of NISSAN NORTH AMERICA, INC.
  9. Tap the companion flange (1) with a plastic hammer as far as the pinion lock nut can be tightened.
    CAUTION: Never damage drive pinion oil seal.
  10. Apply anti-corrosive oil to the thread and seat of the pinion lock nut, and temporarily tighten pinion lock nut to the drive pinion.
    CAUTION: Never reuse pinion lock nut.

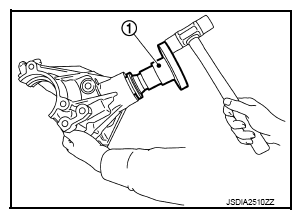

    Fig 5: Tapping Companion Flange Using Plastic Hammer
    G09244231Courtesy of NISSAN NORTH AMERICA, INC.
  11. Tighten pinion lock nut within the specified torque range with the preload gauge (A) [SST: ST3127S000 (J-25765-A)] so that the drive pinion bearing preload is within standard.

    Drive pinion bearing preload: Refer to  "PRELOAD TORQUE ".

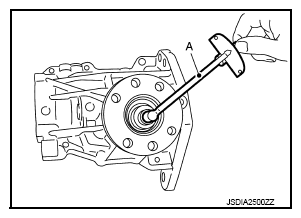

    Fig 6: Measuring Drive Pinion Bearing Preload Using Preload Gauge
    G09244232Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Start the tightening of pinion lock nut from lower limit of the specified torque. Check the preload every 5° to 10° while tightening the pinion lock nut.
    • Replace the collapsible spacer and tighten it again to adjust if preload exceeds the specified value. Never loosen pinion lock nut to adjust preload.
    • After adjustment, rotate the drive pinion back and forth from 2 to 3 times to check for unusual noise, sticking, binding, and so on.
  12. Install ring gear shaft assembly. Refer to "ASSEMBLY ".
  13. Install transfer cover to check and adjust each part. Refer to "ASSEMBLY ".
    CAUTION: Never apply liquid gasket.
  14. Check backlash, tooth contact, total preload and companion flange runout. Refer to "ADJUSTMENT ".
    CAUTION: Measure the total preload without the transfer case oil seal.
  15. Reinstall transfer cover for applying liquid gasket. Refer to "ASSEMBLY ".
  16. Install the transfer case oil seal (left and right). Refer to "ASSEMBLY ".
