Nissan-Datsun
>>
2014
>>
Juke S, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Basic Inspection
>>
Diagnosis And Repair Work Flow
>>
Diagnostic Work Sheet
>>
Interview sheet sample
Interview sheet sample

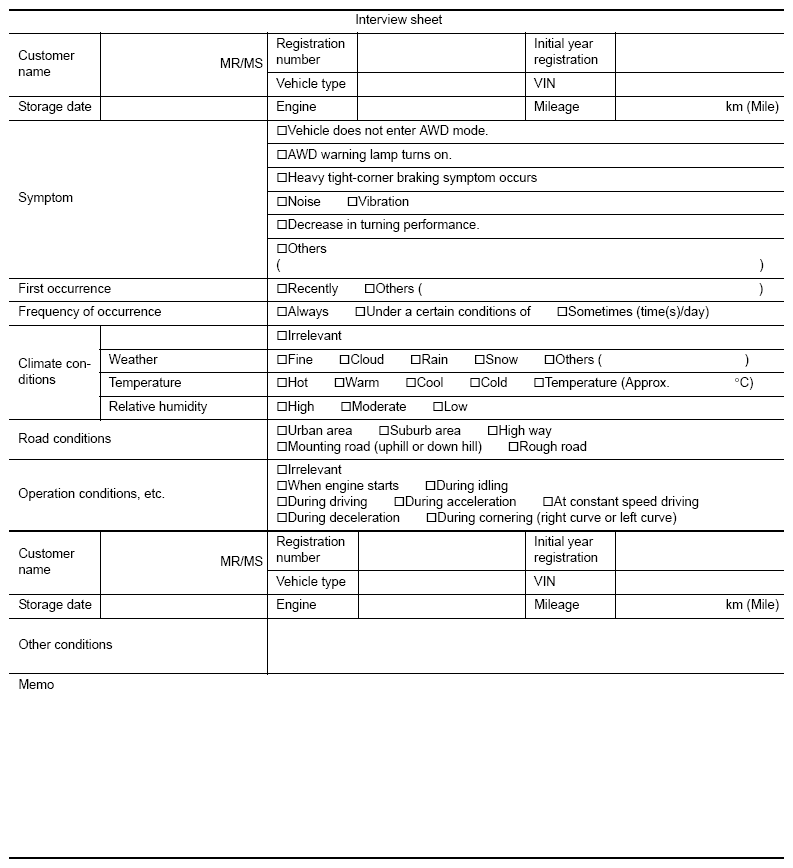

Fig 1: Diagnostic Interview Sheet Sample
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
