Nissan-Datsun
>>
2014
>>
Juke S, 4WD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System
>>
Removal And Installation
>>
Steering Gear And Linkage
>>
Exploded View
>>
Disassembly
Exploded View: Disassembly

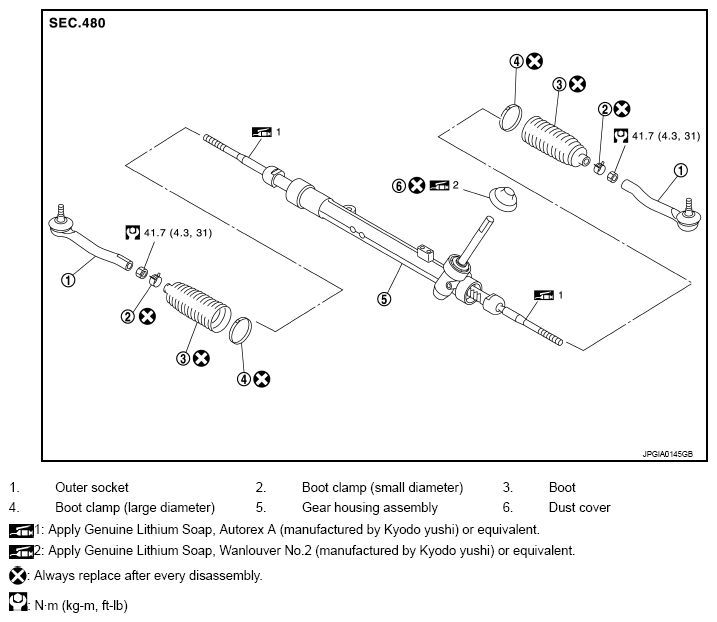

Fig 1: Disassembled View Of Steering Gear And Linkage With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
