Component Inspection

CHECK CRANKSHAFT POSITION SENSOR (POS)-I
1. Turn ignition switch OFF.
2. Loosen the fixing bolt of the sensor.
3. Disconnect crankshaft position sensor (POS) harness connector.
4. Remove the sensor.
5. Visually check the sensor for chipping.
  Is the inspection result normal?

  YES: GO TO 2.

  NO: Replace crankshaft position sensor (POS). Refer to "EXPLODED VIEW ".

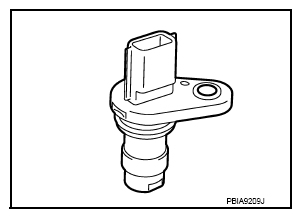

  Fig 1: Identifying Crankshaft Position Sensor
  Courtesy of NISSAN NORTH AMERICA, INC.

CHECK CRANKSHAFT POSITION SENSOR (POS)-II

Check the resistance between crankshaft position sensor (POS) terminals as per the following.

Crankshaft position sensor (POS)		Resistance [at 25°C (77°F)]
+	-
Terminal (Polarity)
1	2	Except 0 or ∞ Ω
1	3
2	3

Is the inspection result normal?

YES: INSPECTION END

NO: Replace crankshaft position sensor (POS). Refer to "EXPLODED VIEW ".
