Exploded View

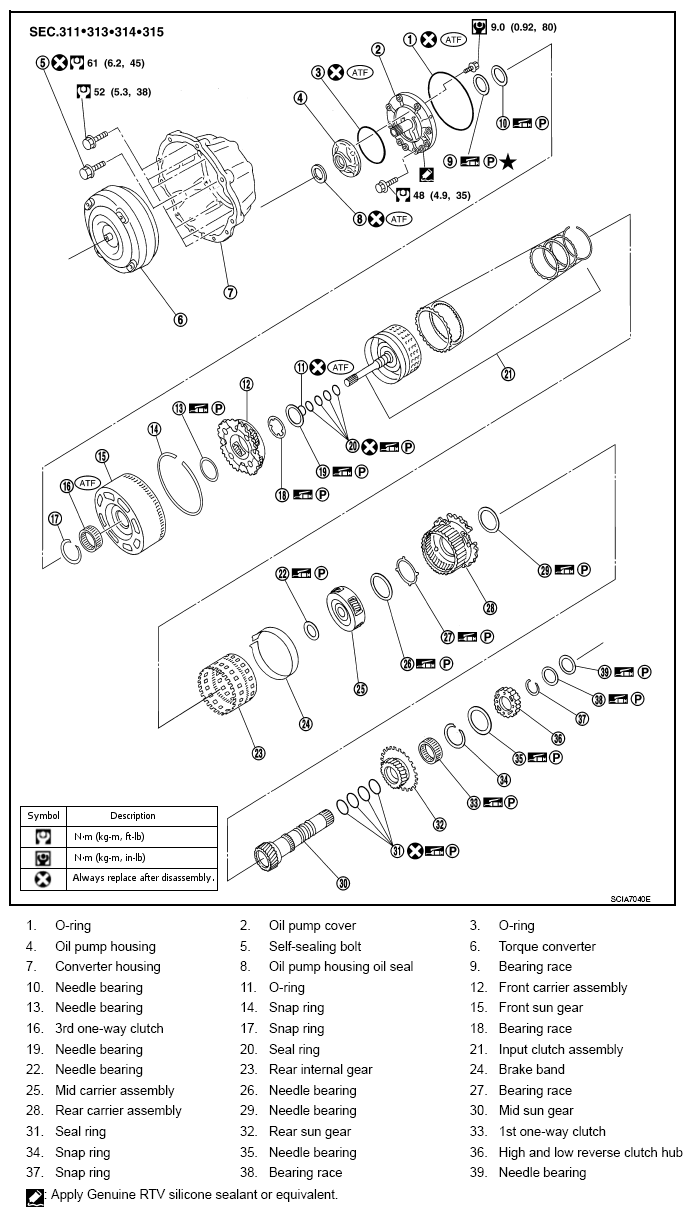

Fig 1: Exploded View Of Automatic Transmission Unit With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENT " for symbols not described on the above.

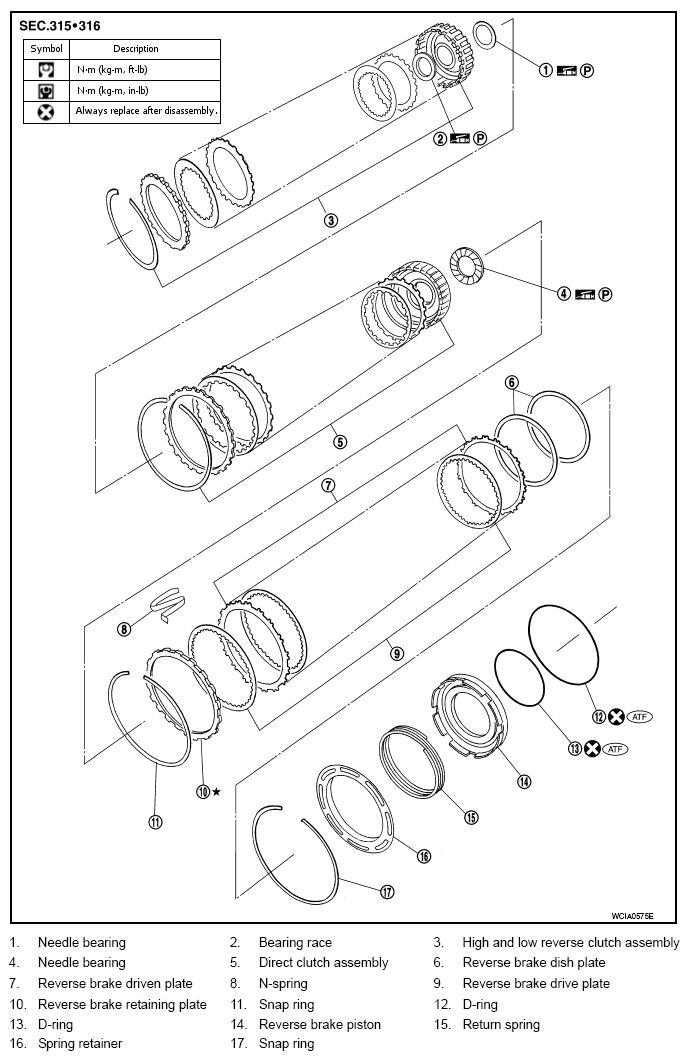

Fig 2: Disassembled View Of Automatic Transmission Unit

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENT " for symbols in the figure.

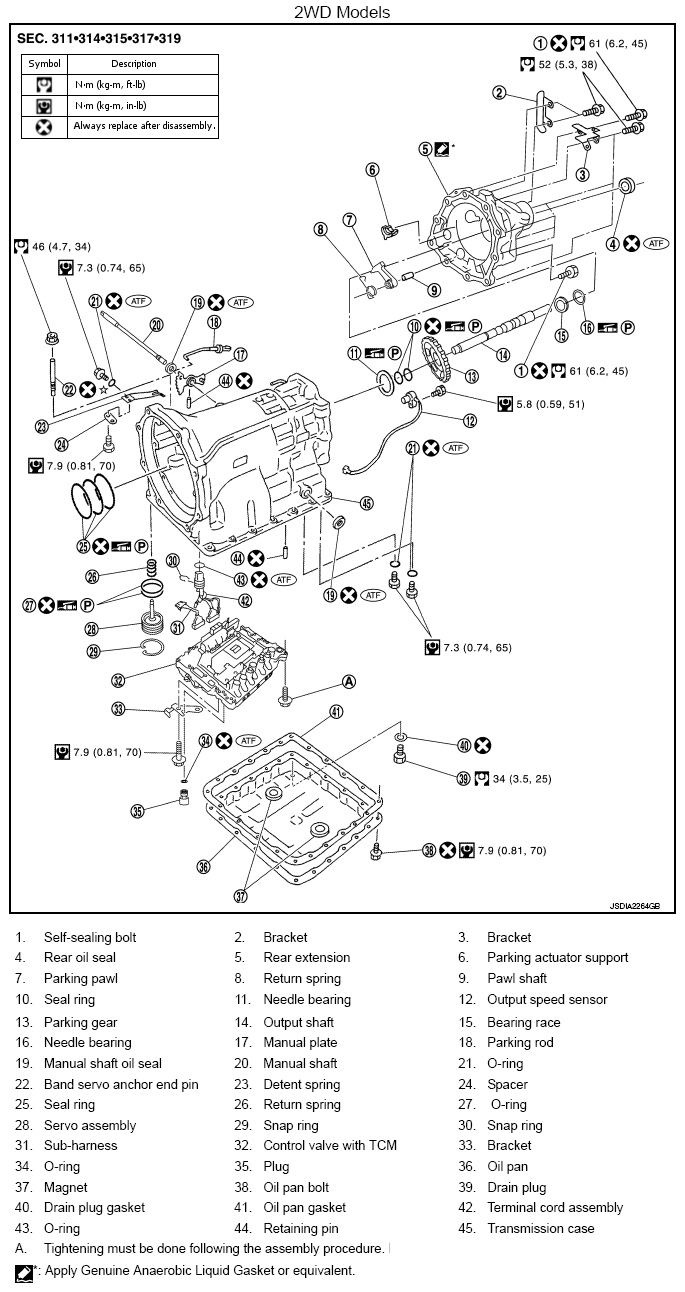

Fig 3: Exploded View Of Automatic Transmission Unit (2WD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

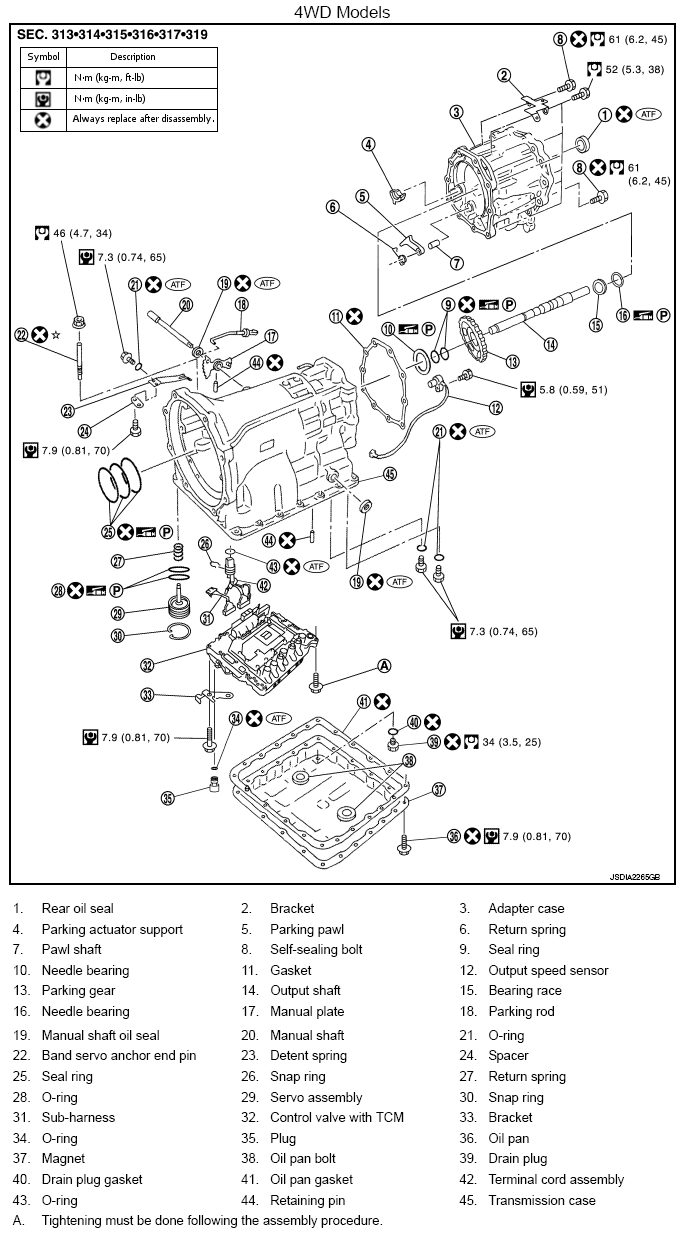

Fig 4: Exploded View Of Automatic Transmission Unit (4WD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENT " for symbols in the figure.
