Removal and Installation: Removal

  1. Using a suitable tool, release the metal clip and pawls, then lift upward the main power window/door lock switch and finisher (2) as an assembly.
  2. Disconnect the harness connectors.
  3. Remove the main power window/door lock switch and finisher (2) assembly from the front door finisher.

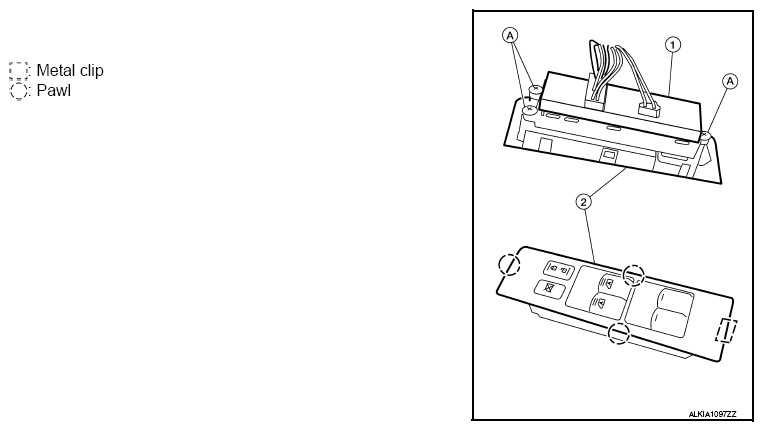

    Fig 1: Locating Power Window Main Switch, Tab And Switch
    G09149248Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the three screws (A) from the main power window/door lock switch (1).
  5. Remove the main power window/door lock switch (1) from the main power window/door lock switch finisher (2).
