Removal and Installation: Removal

  1. Using a suitable tool, release the metal clip and pawls, then lift upward the front power window/door lock switch and finisher (2) as an assembly.
  2. Disconnect the harness connector.
  3. Remove the front power window/door lock switch and finisher (2) assembly from the front door finisher.

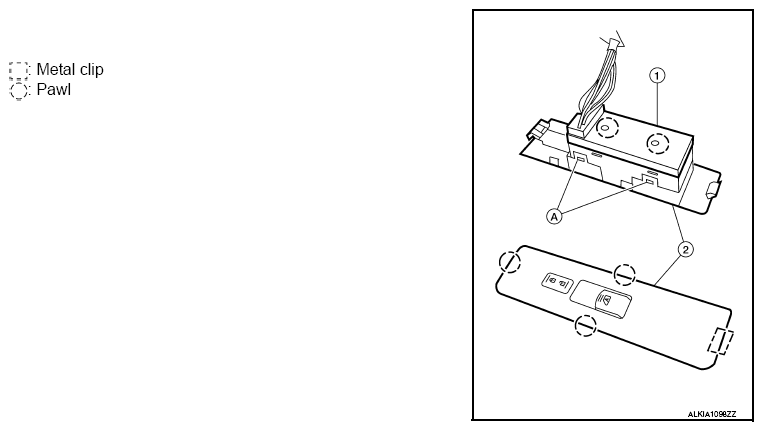

    Fig 1: Locating Power Window Main Switch, Tab And Finisher
    G09149249Courtesy of NISSAN NORTH AMERICA, INC.
  4. Release the four tabs (A), two on each side, then separate the front power window/door lock switch (1) from the front power window/door lock switch finisher (2).
