Exploded View: Components

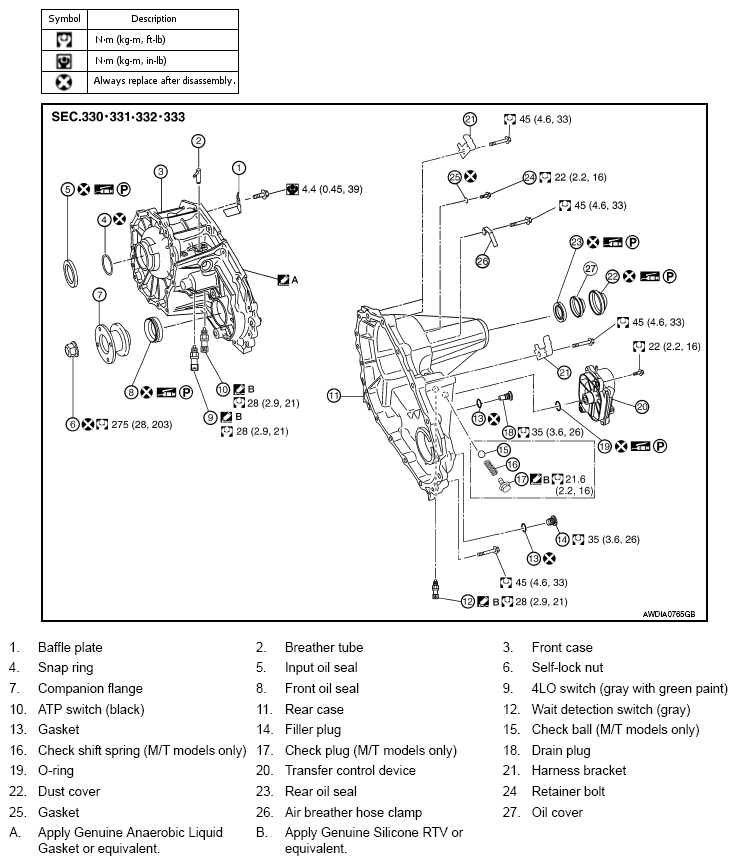

Fig 1: Exploded View Of Transfer Assembly (1 Of 2)
G09146664Courtesy of NISSAN NORTH AMERICA, INC.

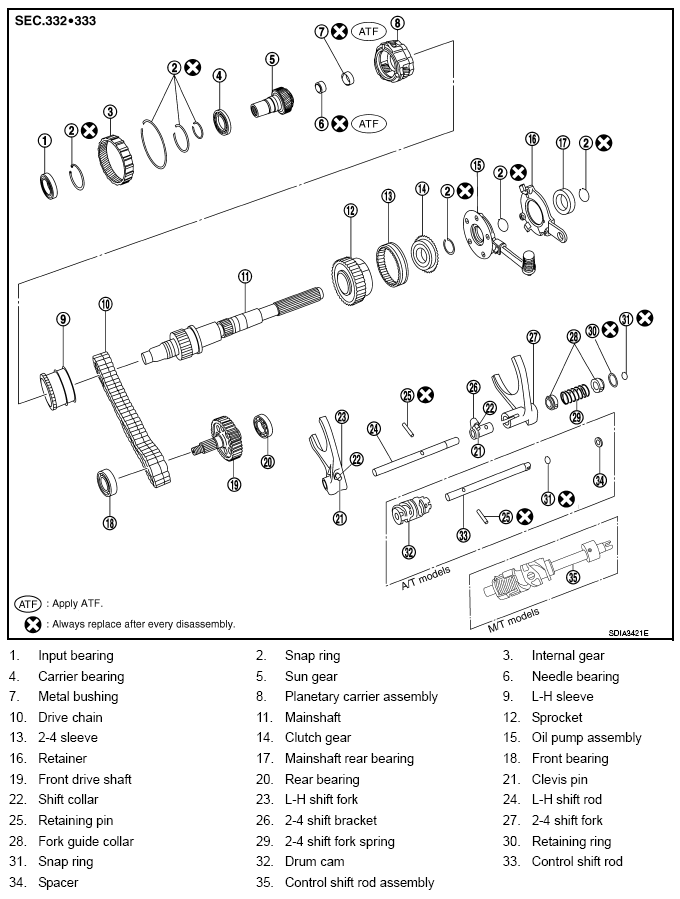

Fig 2: Exploded View Of Transfer Assembly (2 Of 2)
G09146665Courtesy of NISSAN NORTH AMERICA, INC.
