Home >> Nissan-Datsun >> 2014 >> Frontier SL, 4WD >> Repair and Diagnosis >> Transmission >> Transfer Case >> System Description >> 4WD System >> System Diagram >> Notes

System Diagram: Notes

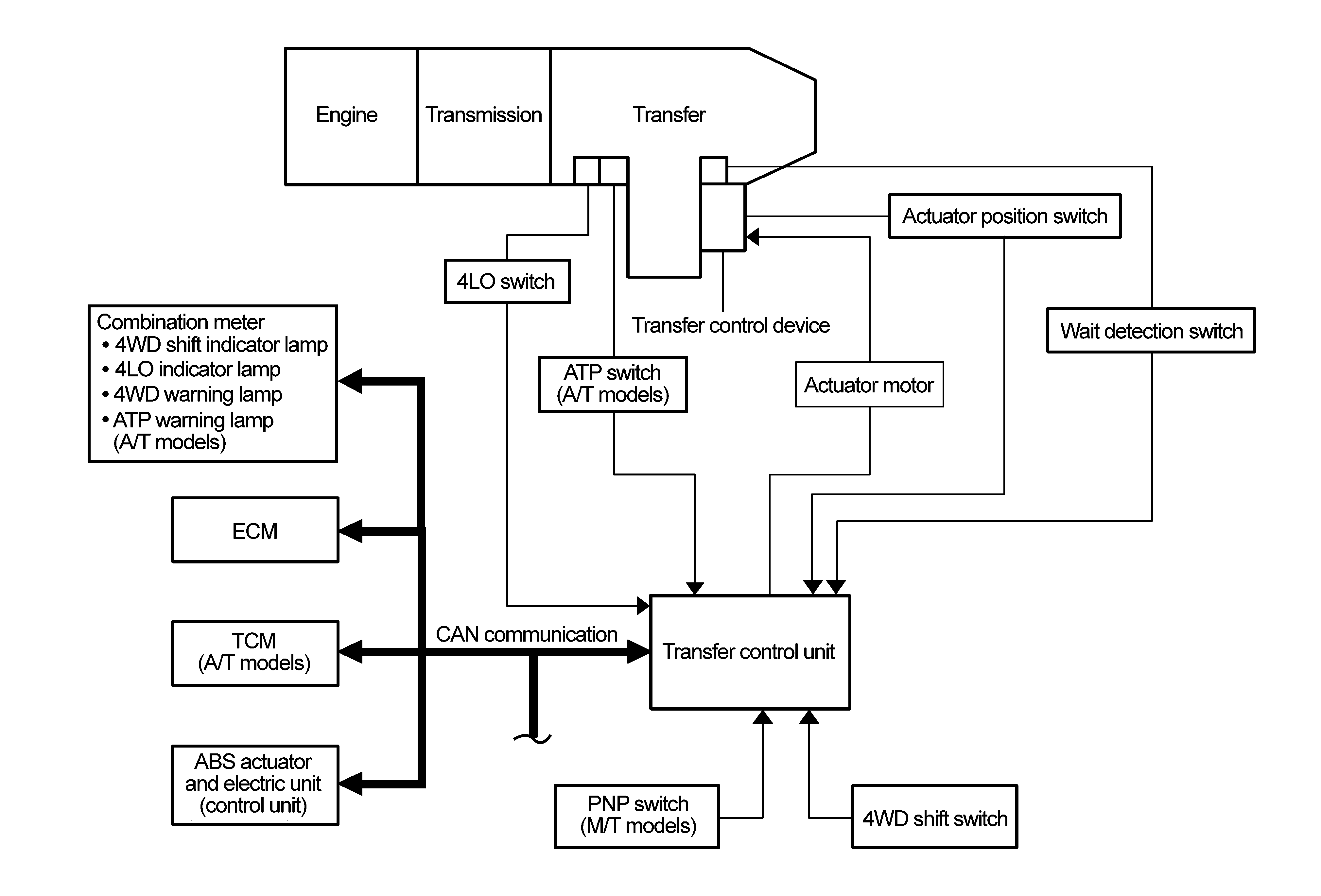

Fig 1: 4WD System Diagram

G08710877

Courtesy of NISSAN NORTH AMERICA, INC.
