LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2014
>>
Frontier SL, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
System Description
>>
4WD System
>>
Cross-Sectional View
Cross-Sectional View

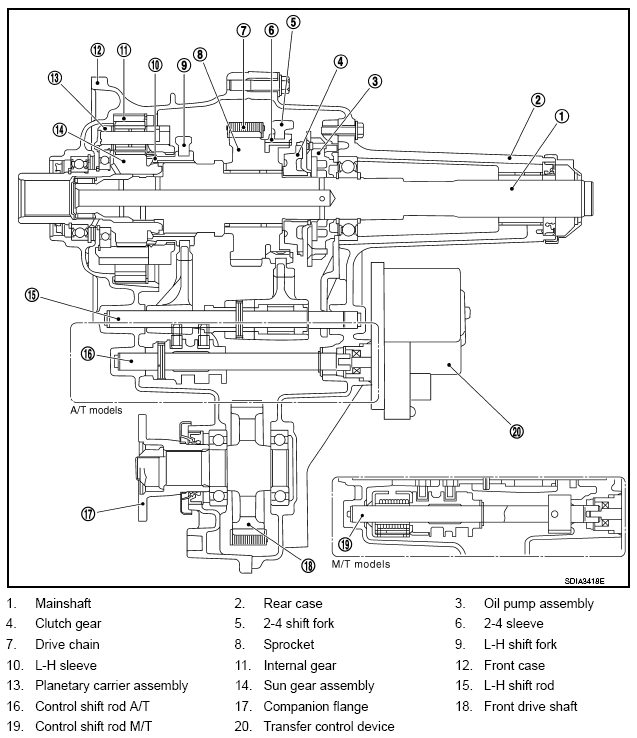

Fig 1: Transfer Case Cross-Sectional View
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
