Exploded View

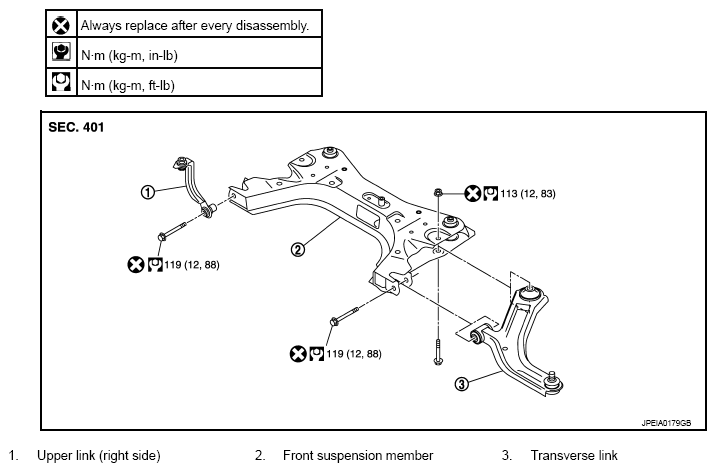

Fig 1: Upper Link (Right Side), Front Suspension Member And Transverse Link With Torque Specifications
G09518908Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
