Engine Control System (Diagnostic Codes & Symptom Tests)
>>
Symptom Diagnosis
>>
Engine Control System Symptoms
>>
Symptom Table
>>
System - Basic Engine Control System
System - Basic Engine Control System

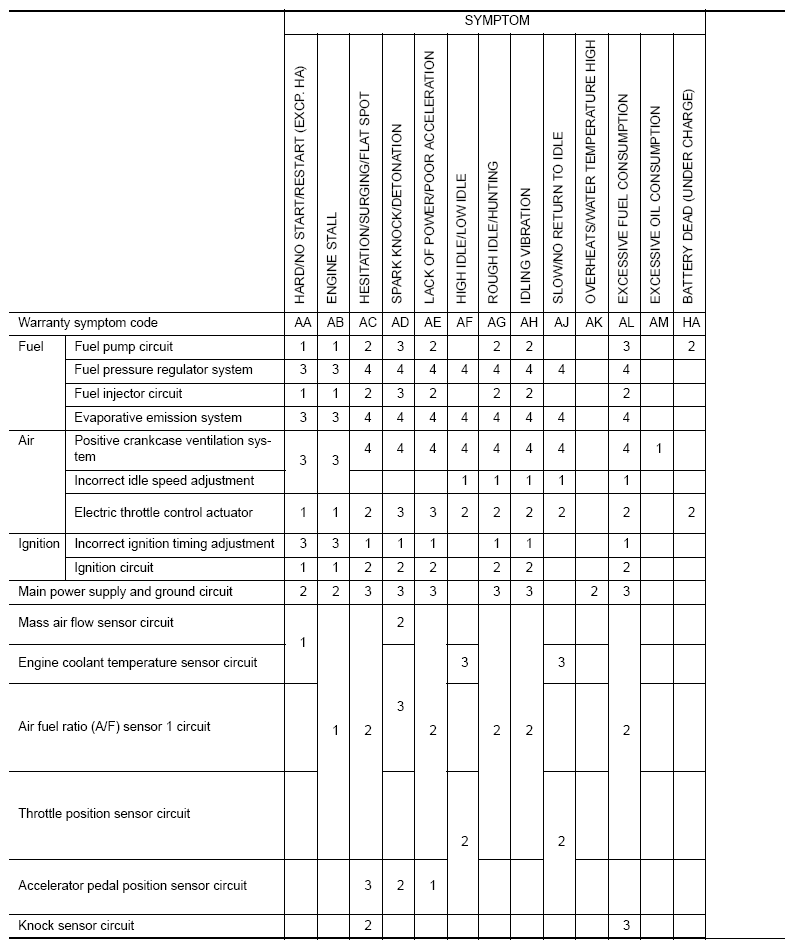

Fig 1: Engine Control System Symptoms Chart - Basic Engine Control System (1 Of 2)

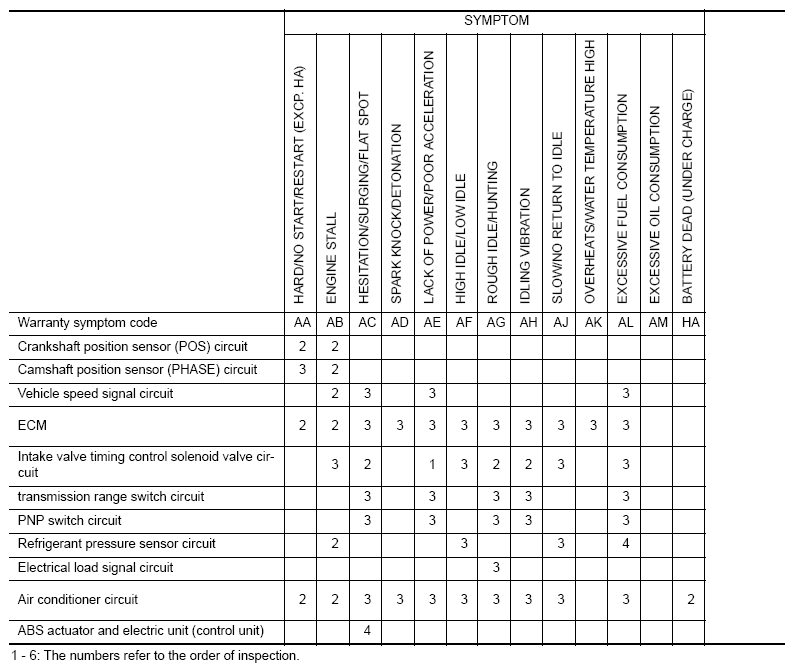

Fig 2: Engine Control System Symptoms Chart - Basic Engine Control System (2 Of 2)
