Exploded View

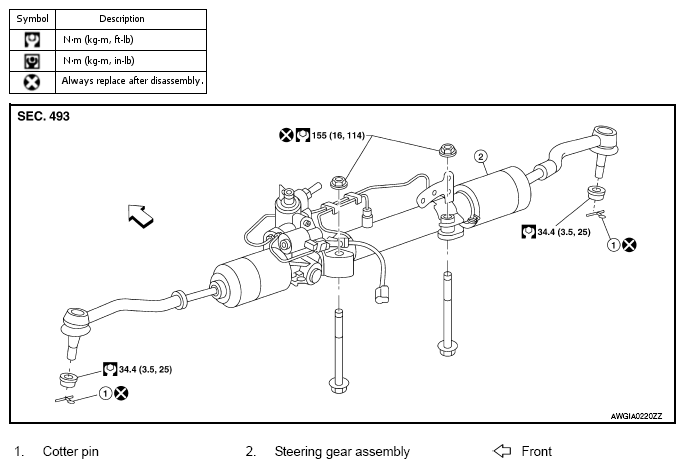

Fig 1: Cotter Pin And Steering Gear Assembly With Torque Specifications

G09141320

Courtesy of NISSAN NORTH AMERICA, INC.
