Exploded View
Exploded View

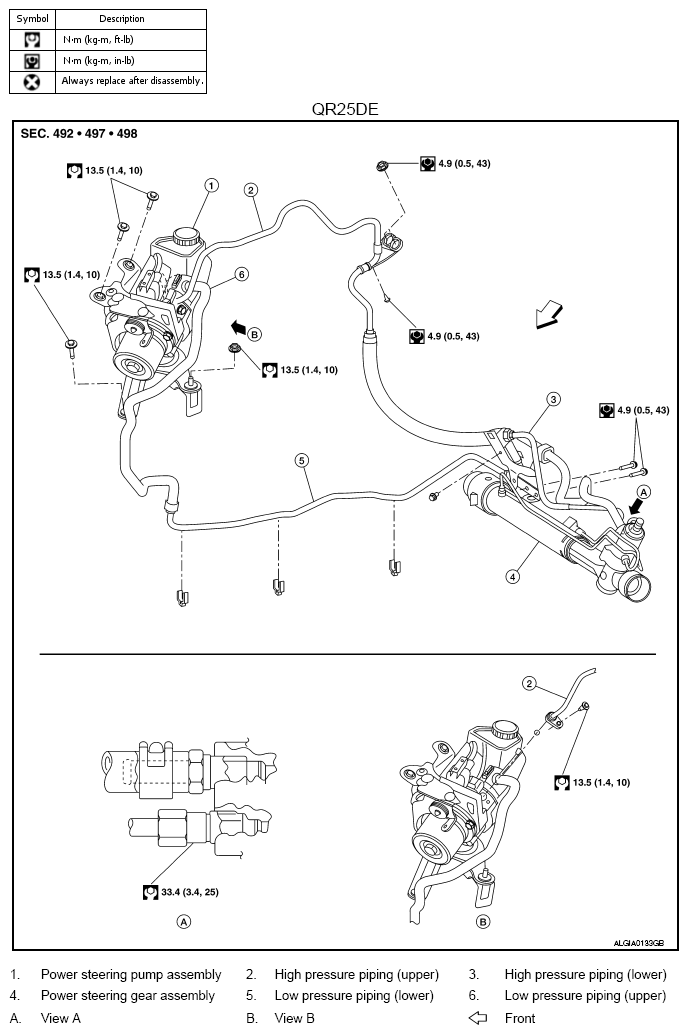

Fig 1: Exploded View Of Hydraulic Line (QR25DE) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

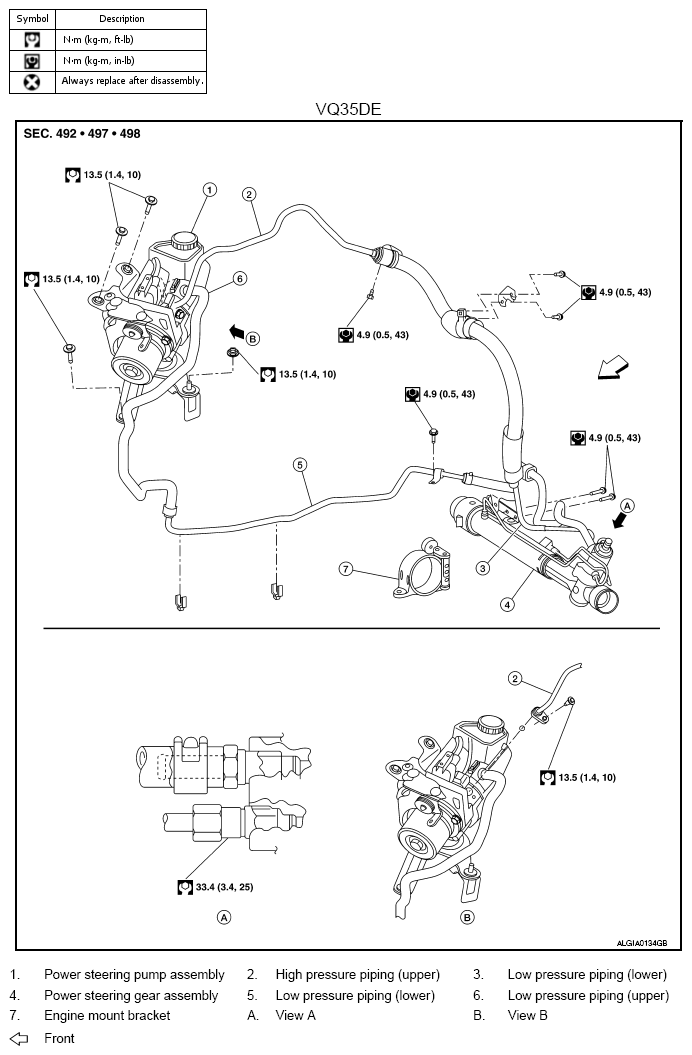

Fig 2: Exploded View Of Hydraulic Line (VQ35DE) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
