Connector End Views

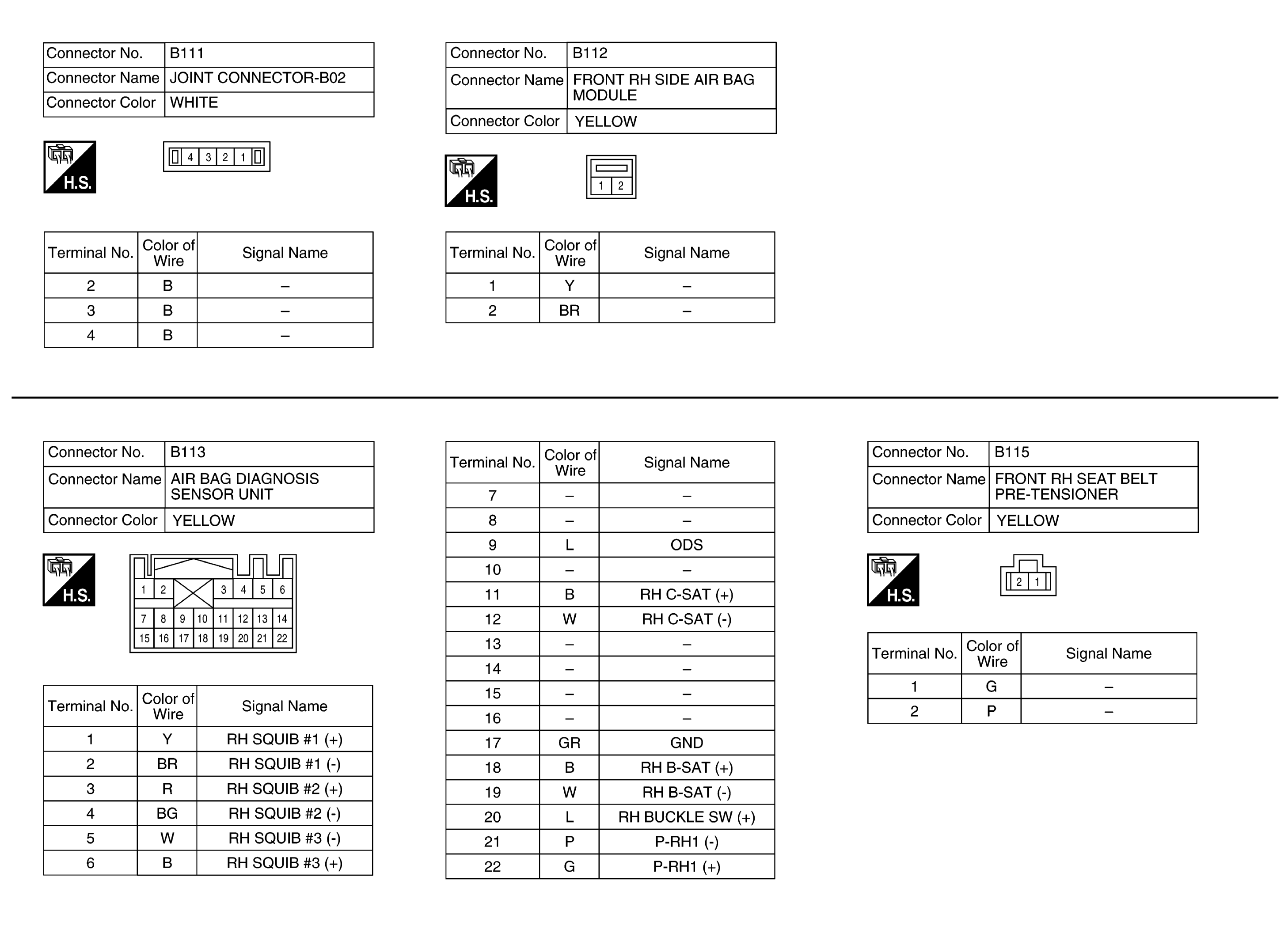

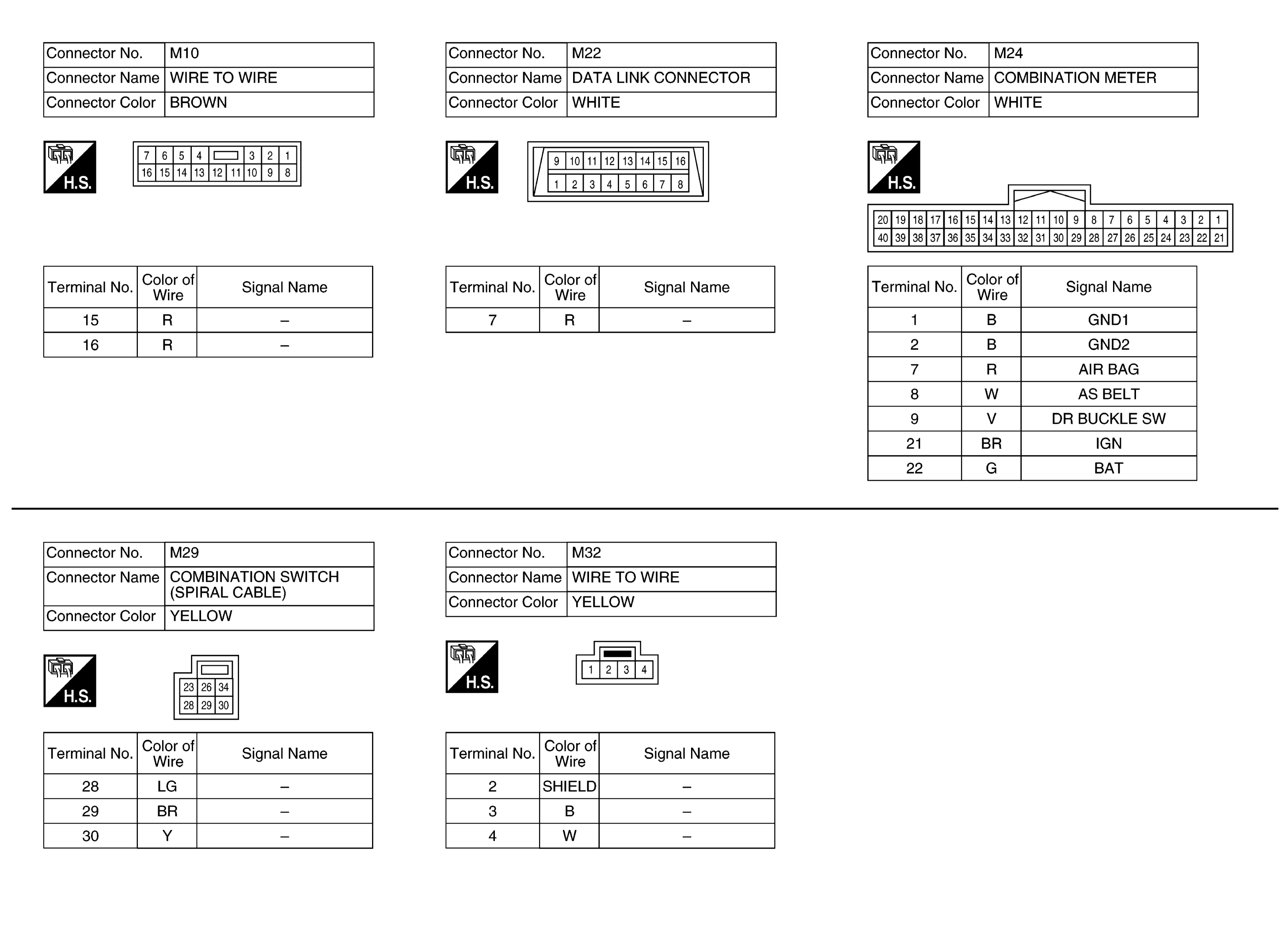

Fig 1: SRS Air Bag Control System Connector End Views (1 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

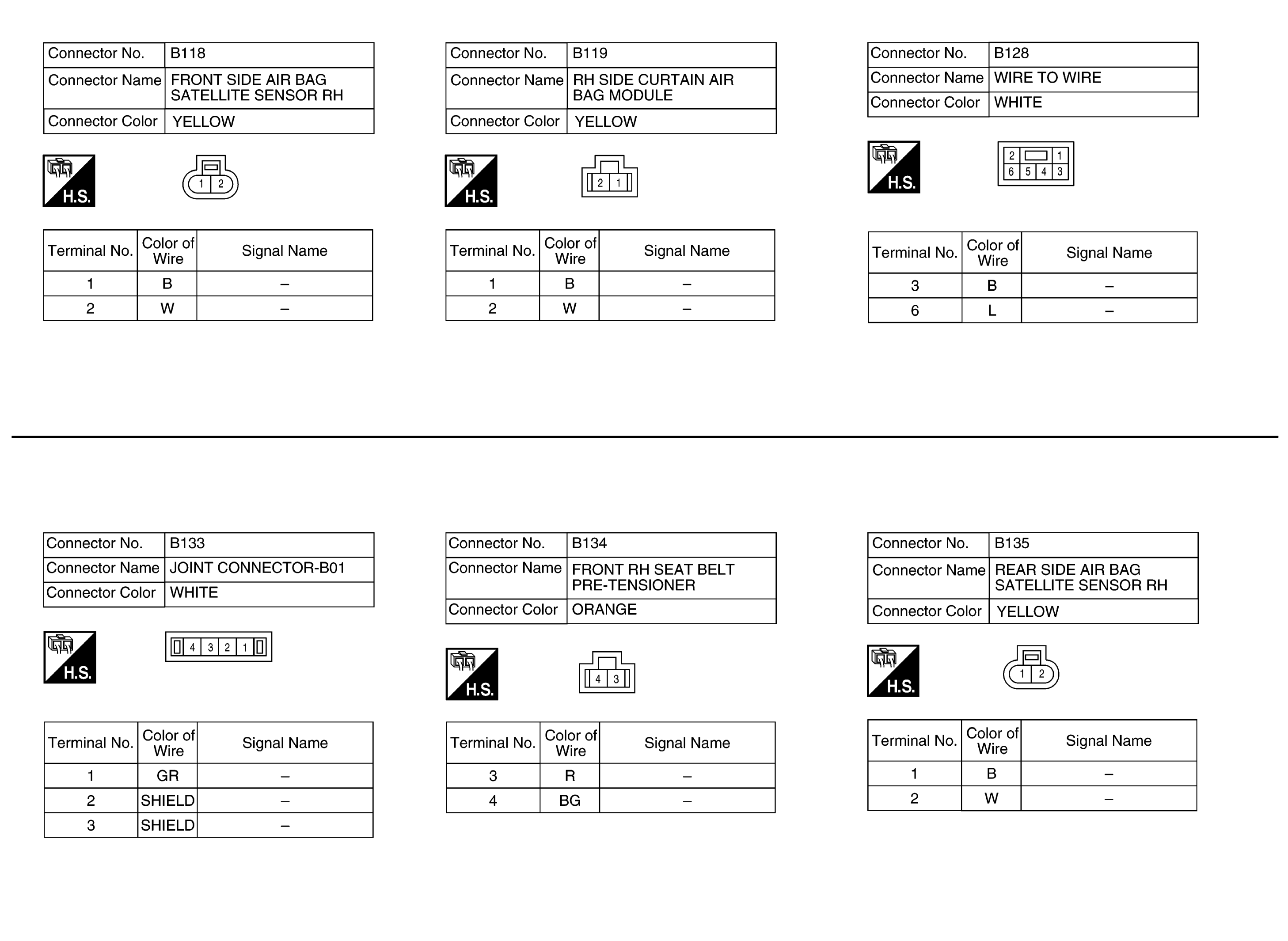

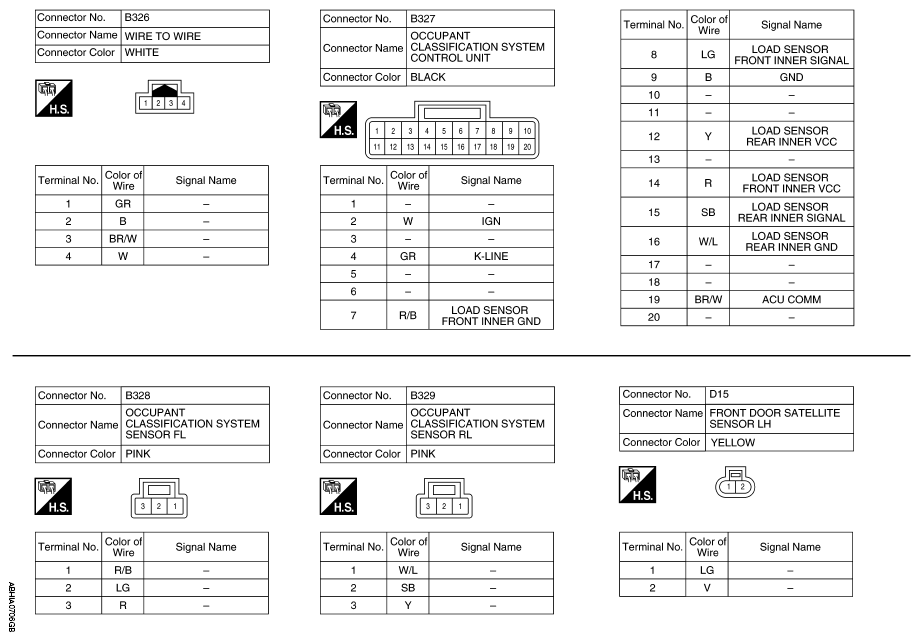

Fig 2: SRS Air Bag Control System Connector End Views (2 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

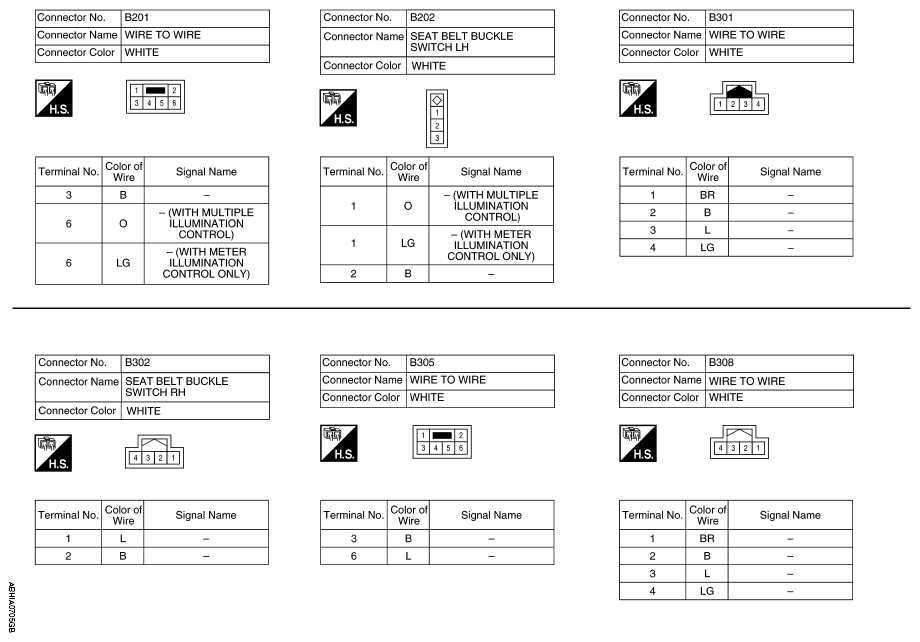

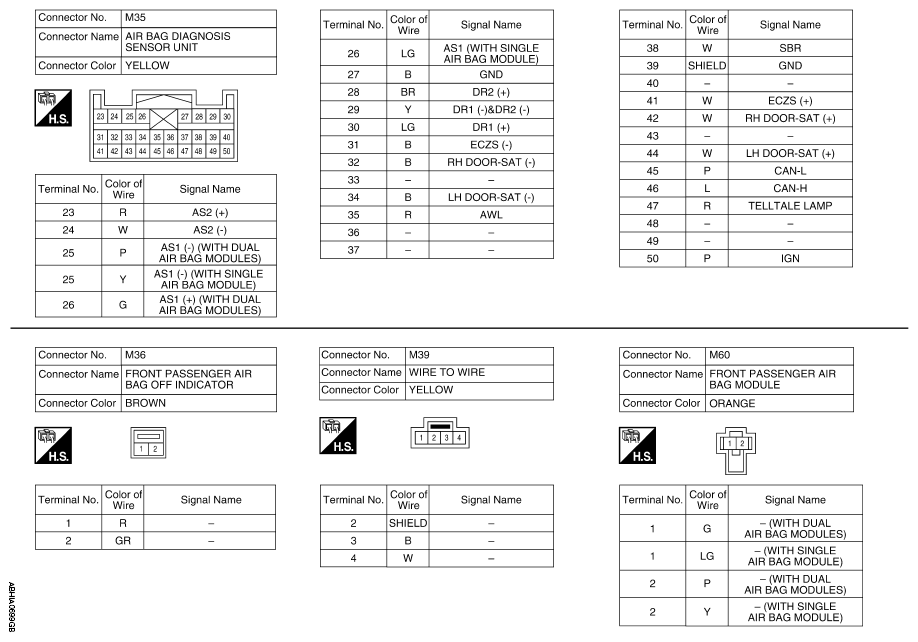

Fig 3: SRS Air Bag Control System Connector End Views (3 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

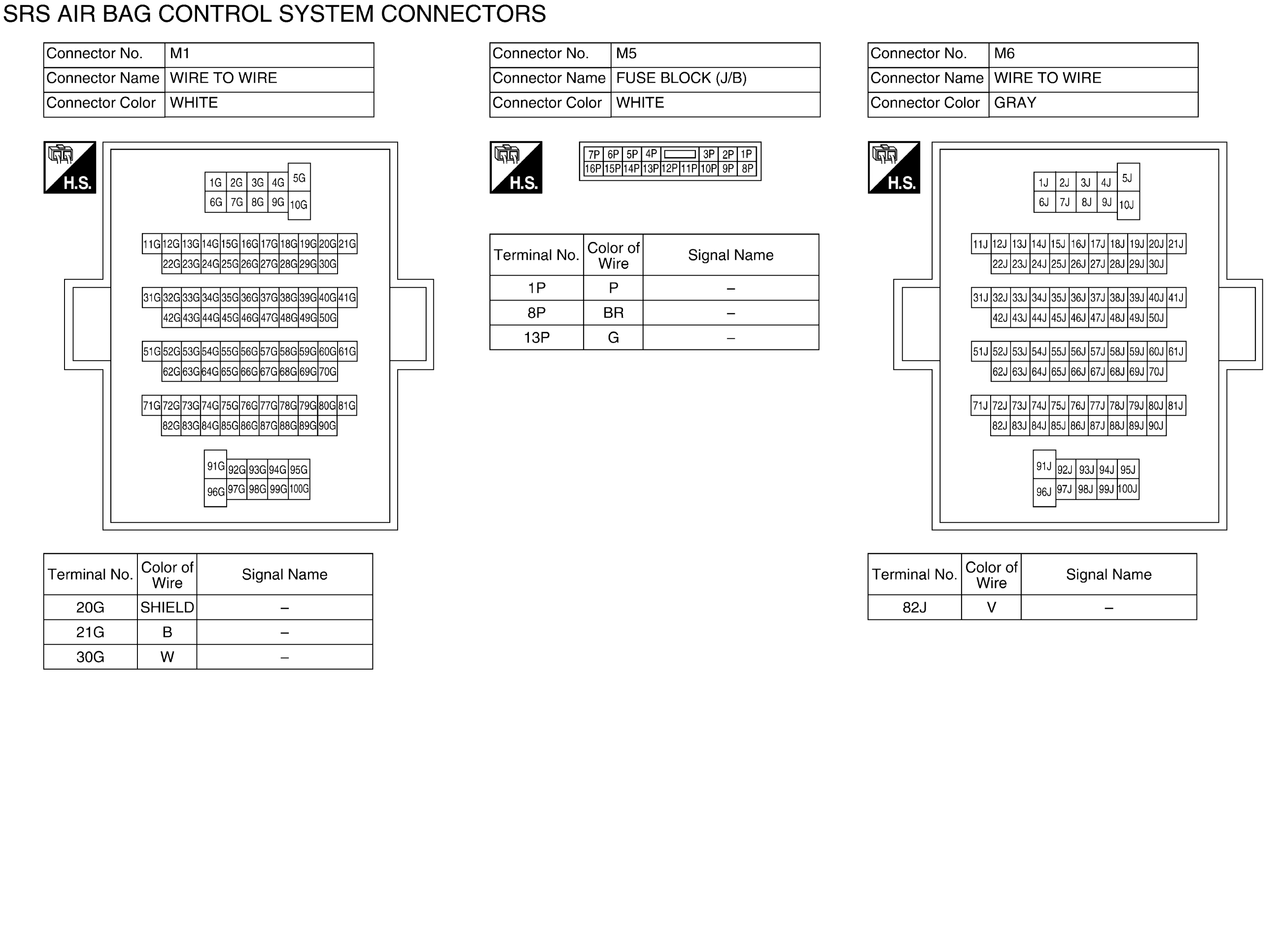

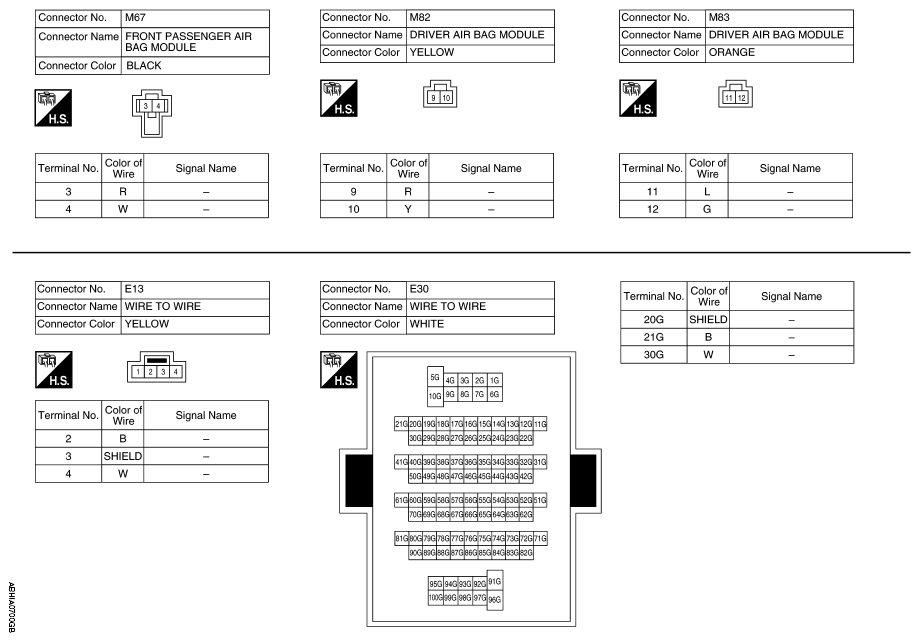

Fig 4: SRS Air Bag Control System Connector End Views (4 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

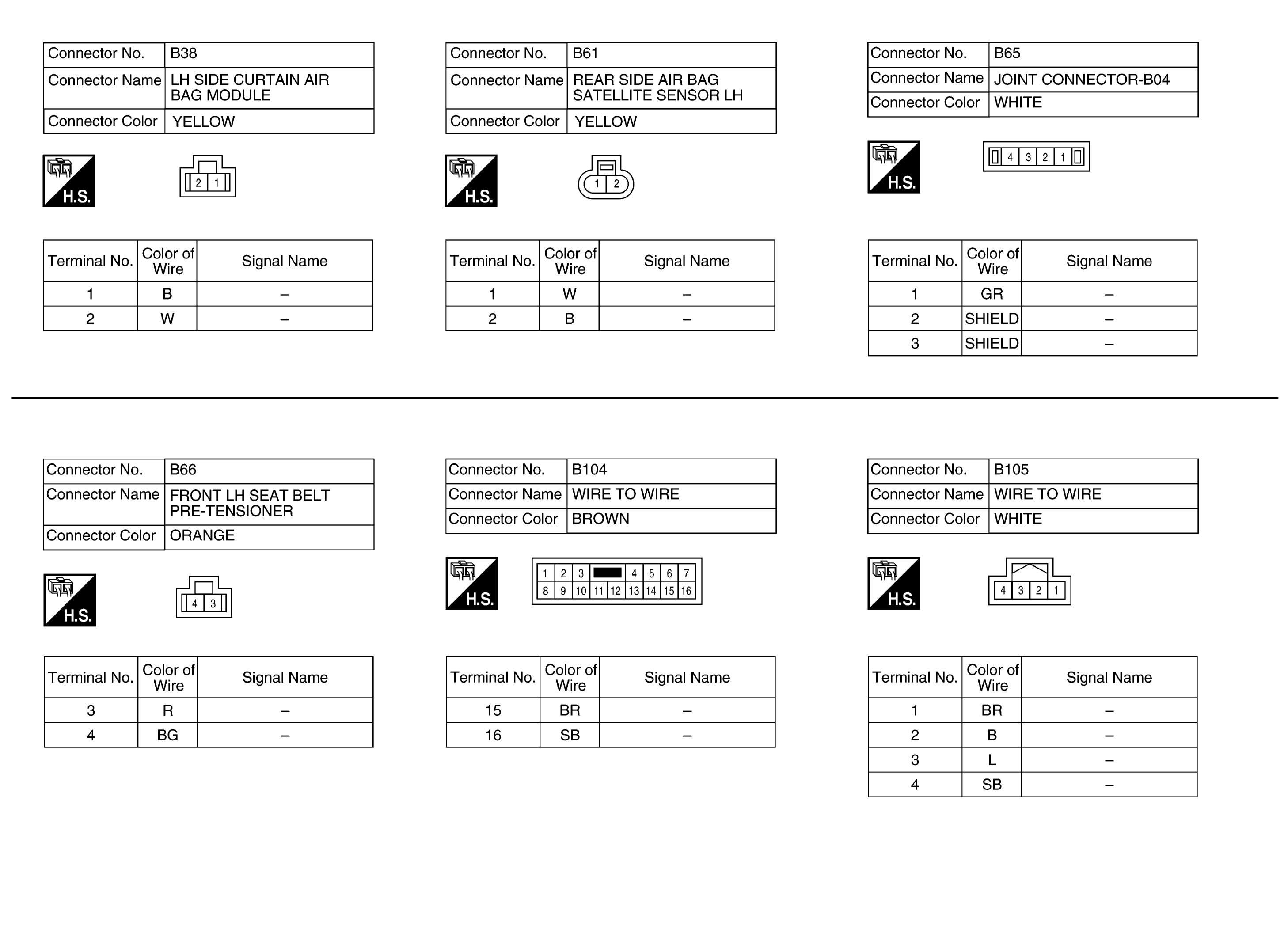

Fig 5: SRS Air Bag Control System Connector End Views (5 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

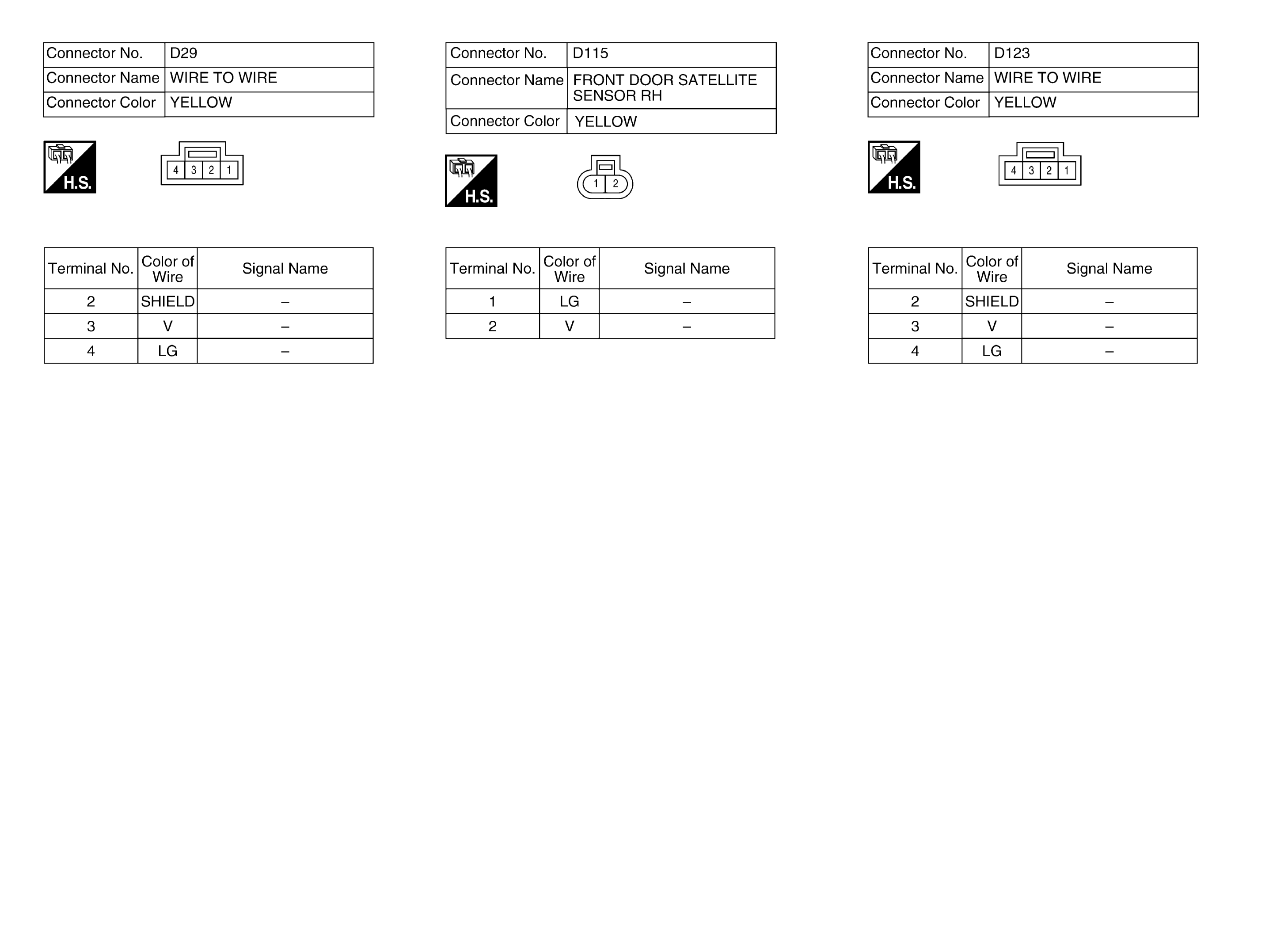

Fig 6: SRS Air Bag Control System Connector End Views (6 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

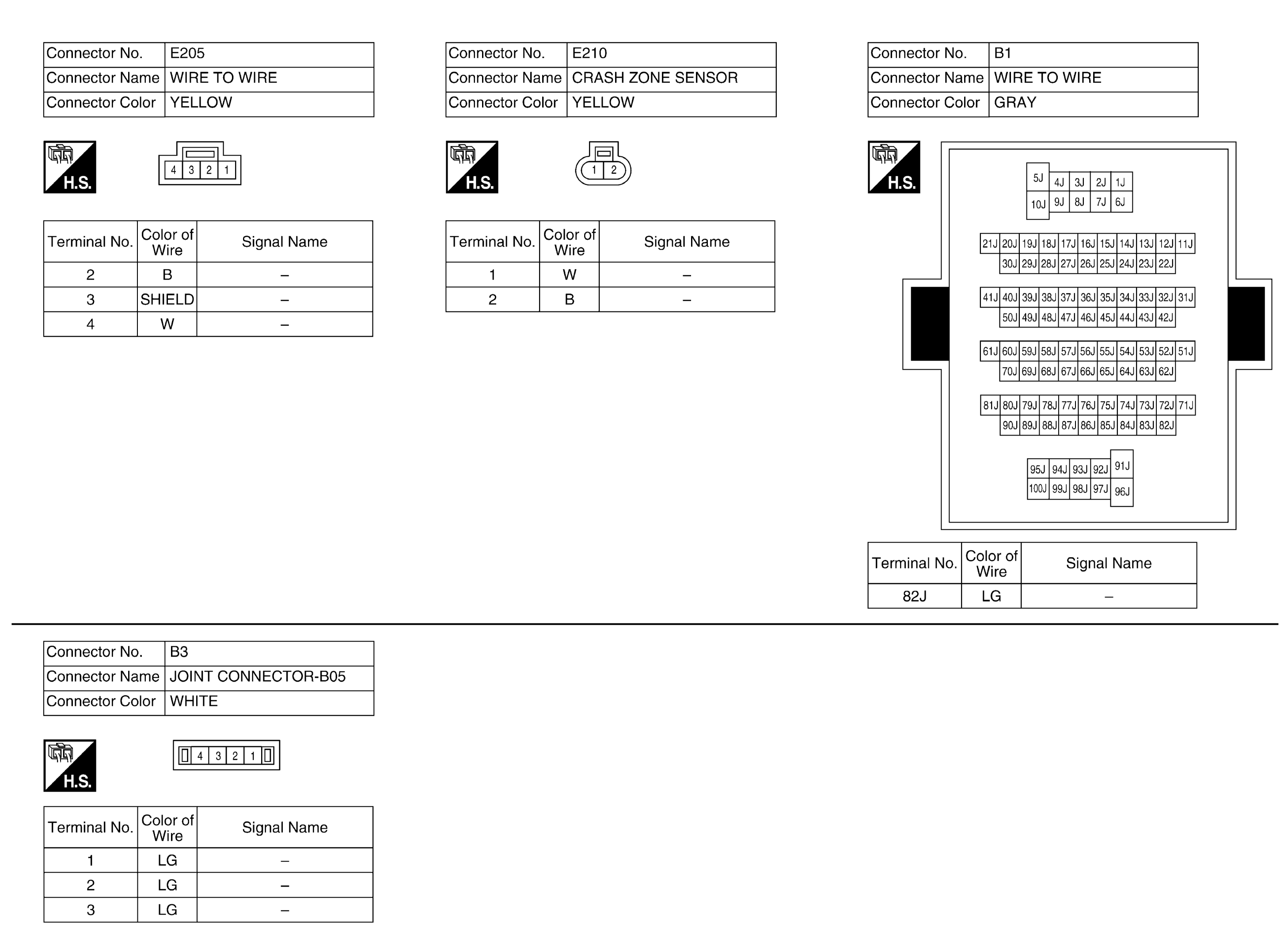

Fig 7: SRS Air Bag Control System Connector End Views (7 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

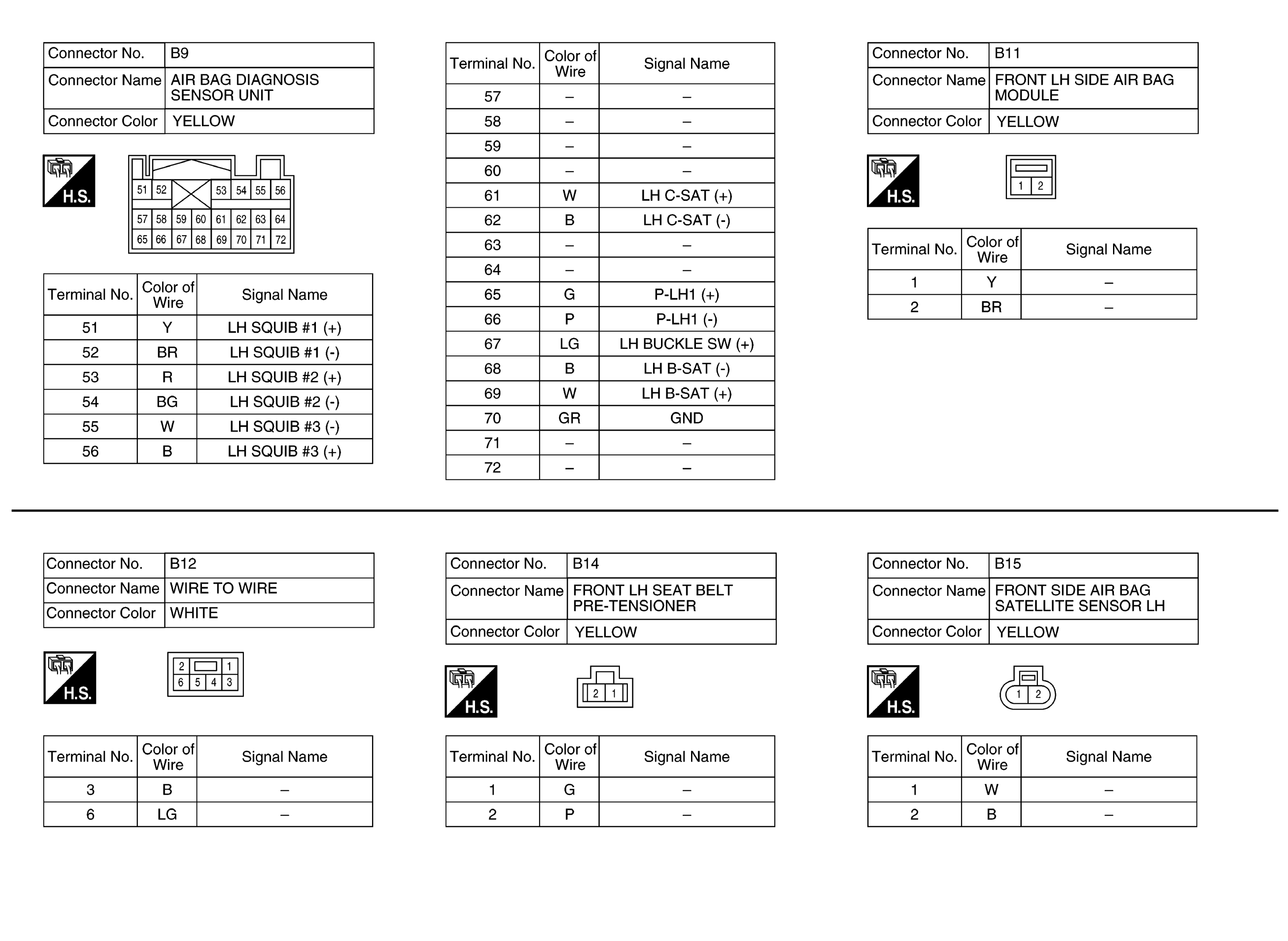

Fig 8: SRS Air Bag Control System Connector End Views (8 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: SRS Air Bag Control System Connector End Views (9 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: SRS Air Bag Control System Connector End Views (10 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: SRS Air Bag Control System Connector End Views (11 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: SRS Air Bag Control System Connector End Views (12 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.
