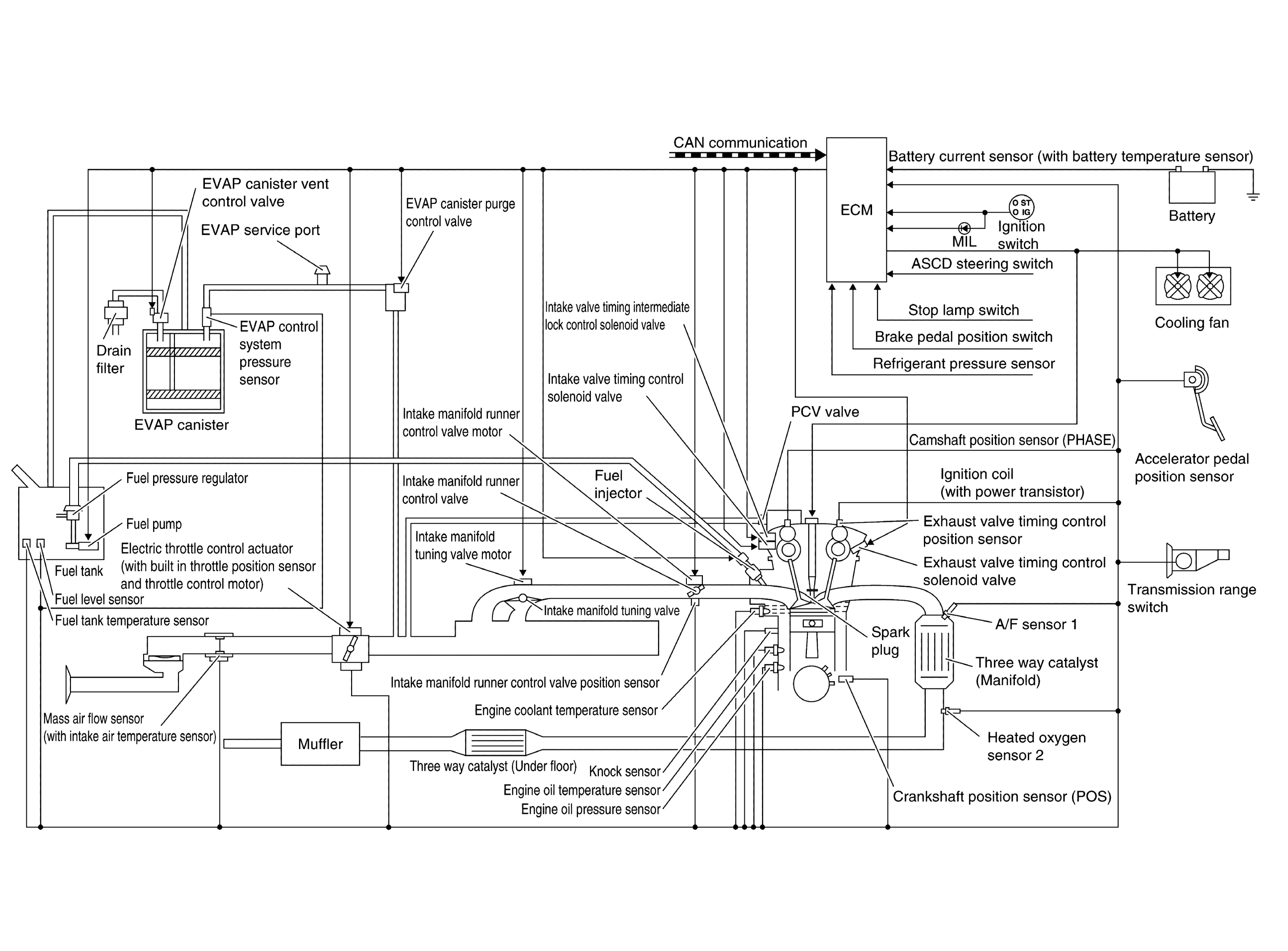

Home >> Nissan-Datsun >> 2014 >> Altima Base >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System (Introduction) (Qr25DE) >> System Description >> System >> Engine Control System >> ENGINE CONTROL SYSTEM: System Description >> System Diagram
