Home >> Nissan-Datsun >> 2014 >> Altima Base >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle >> Unit Disassembly And Assembly >> Front Drive Shaft >> Disassembly and Assembly (RH) >> Notes

Disassembly and Assembly (RH): Notes

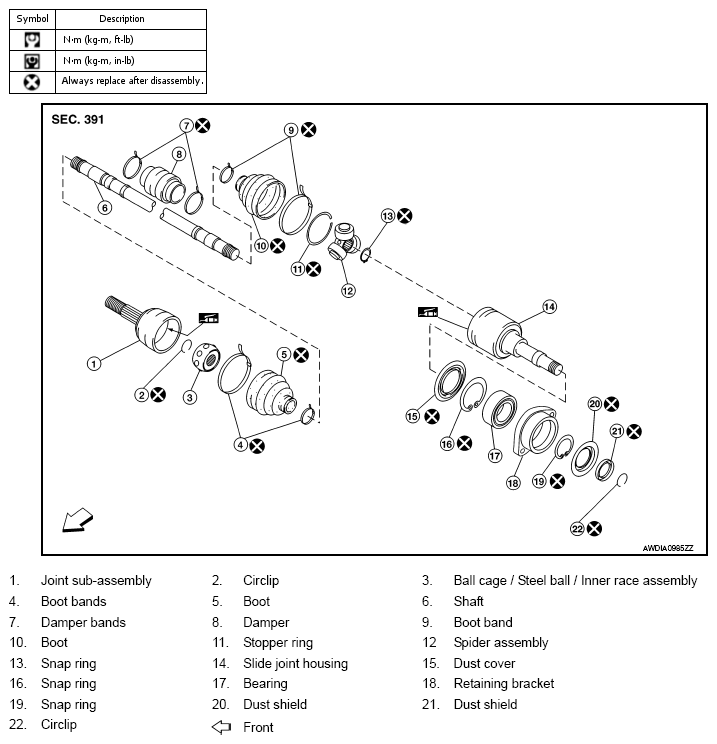

Fig 1: Disassembled View Of Front Drive Shaft

G09141000

Courtesy of NISSAN NORTH AMERICA, INC.
