Disassembly and Assembly (LH): Notes

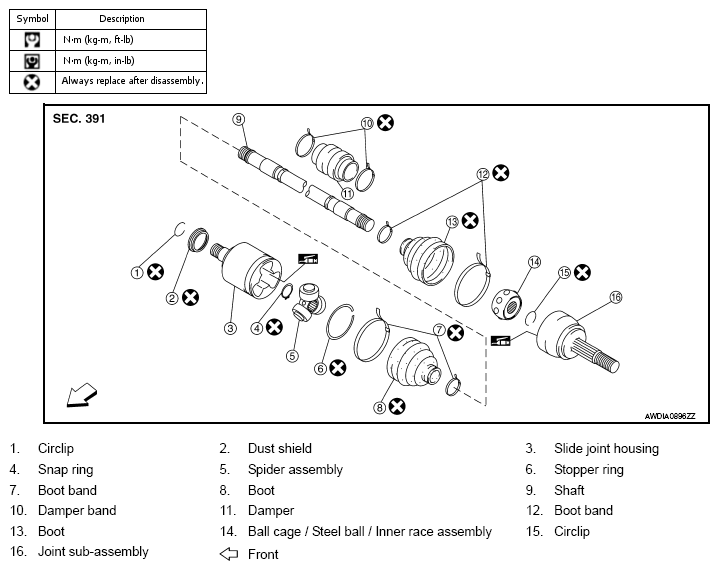

Fig 1: Disassembled View Of Front Drive Shaft

G09140984

Courtesy of NISSAN NORTH AMERICA, INC.
