Connector End Views

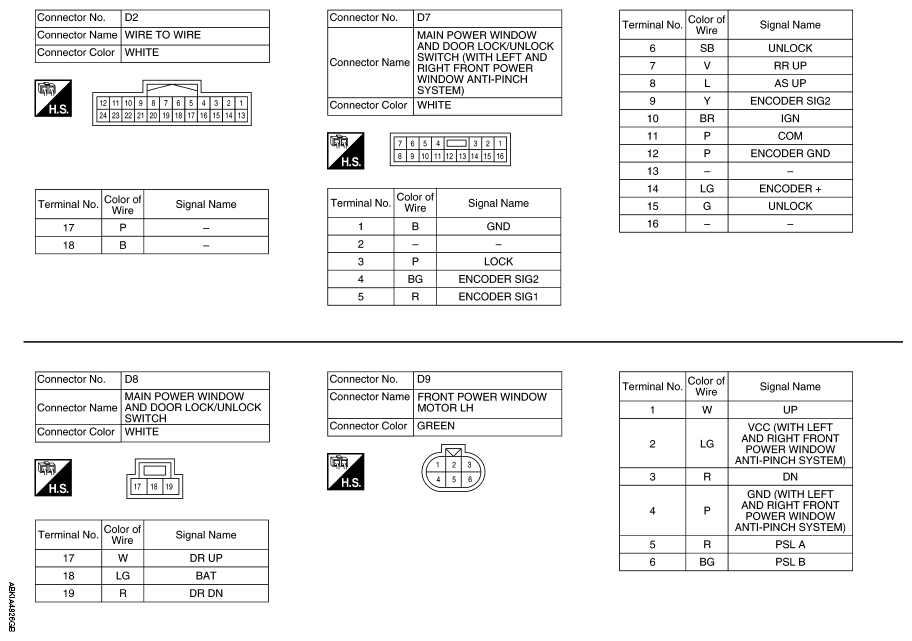

Fig 1: Power Window System Connector End Views With Left And Right Front Power Window Anti-Pinch (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

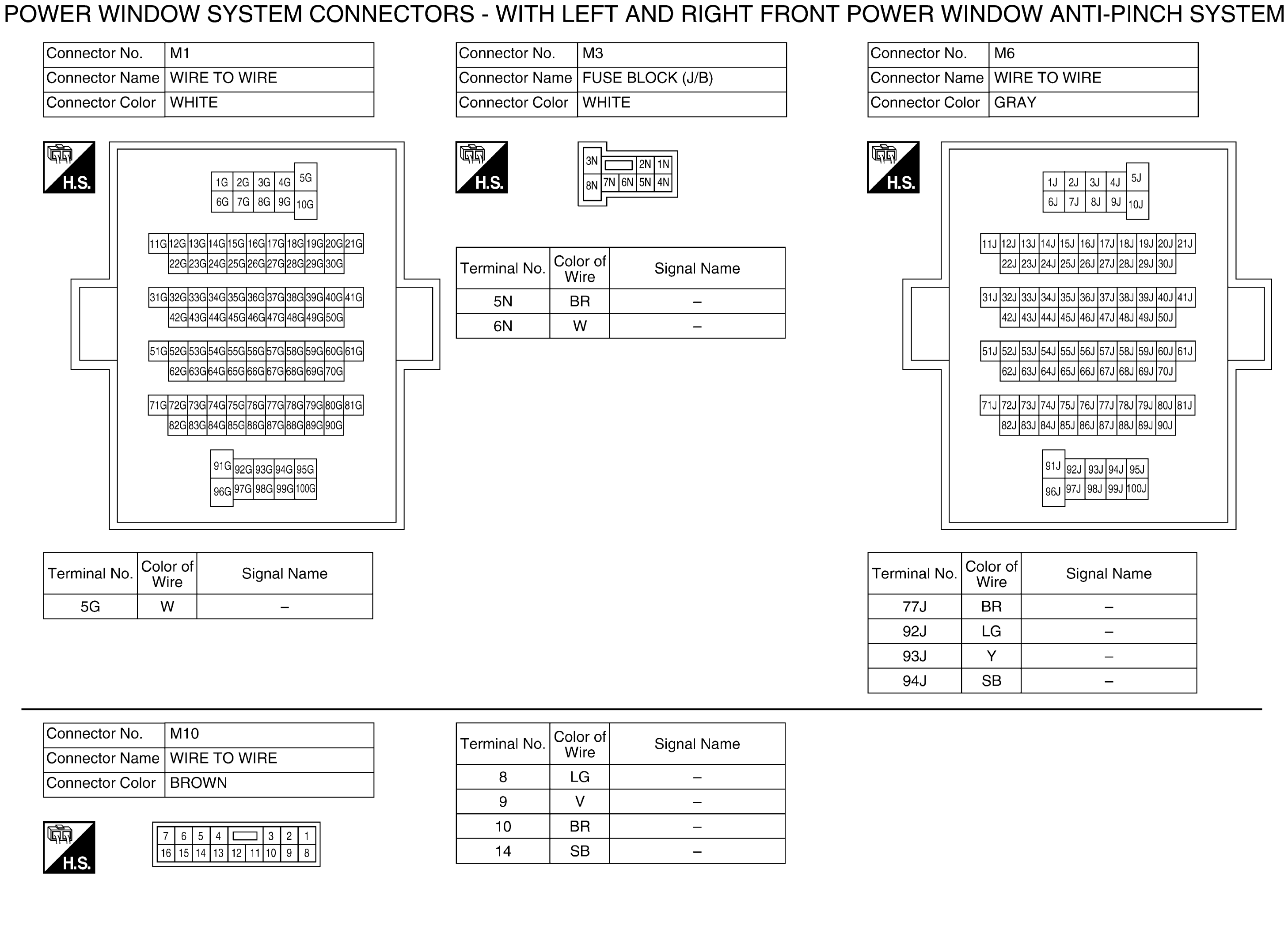

Fig 2: Power Window System Connector End Views With Left And Right Front Power Window Anti-Pinch (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

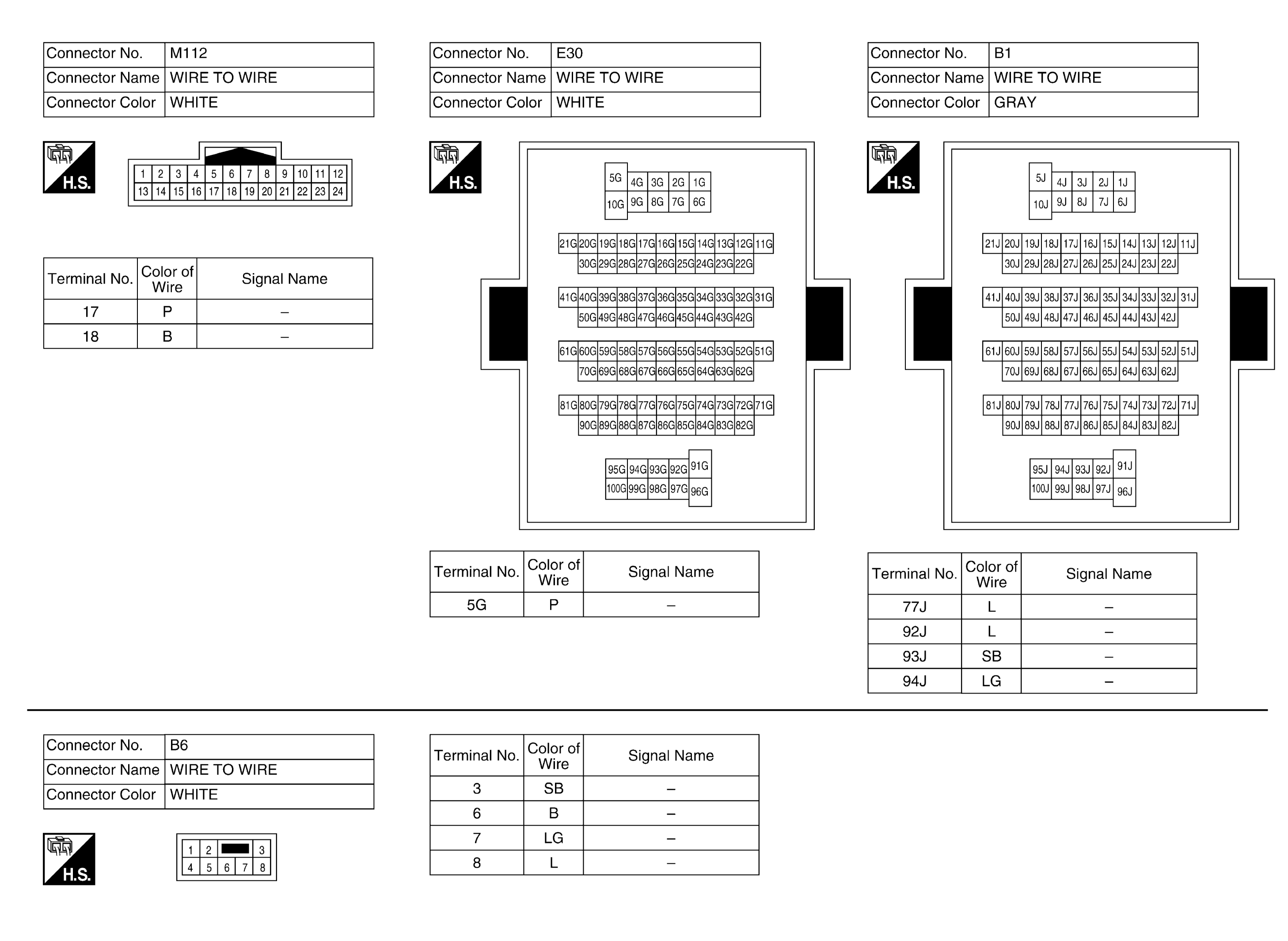

Fig 3: Power Window System Connector End Views With Left And Right Front Power Window Anti-Pinch (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

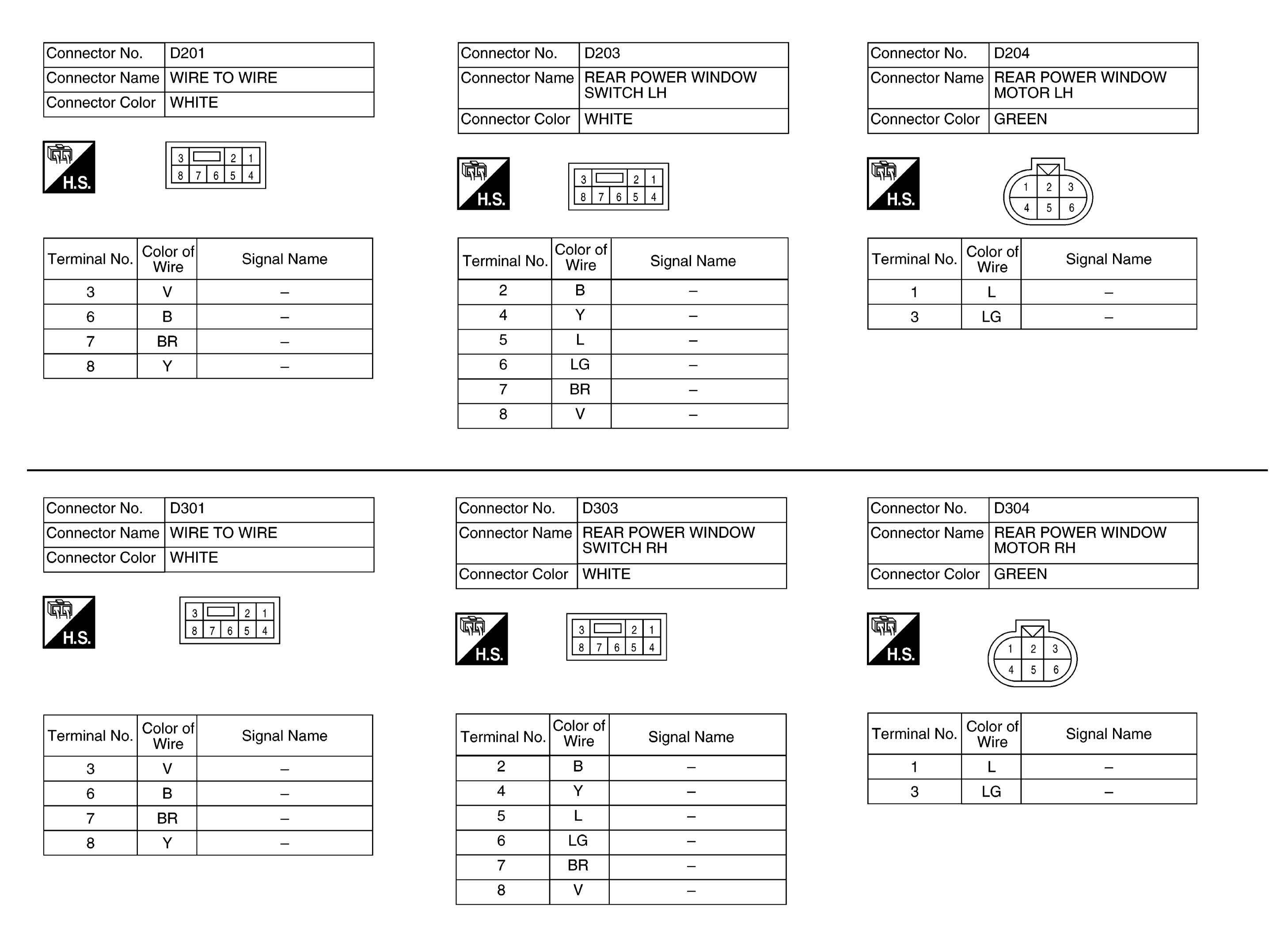

Fig 4: Power Window System Connector End Views With Left And Right Front Power Window Anti-Pinch (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

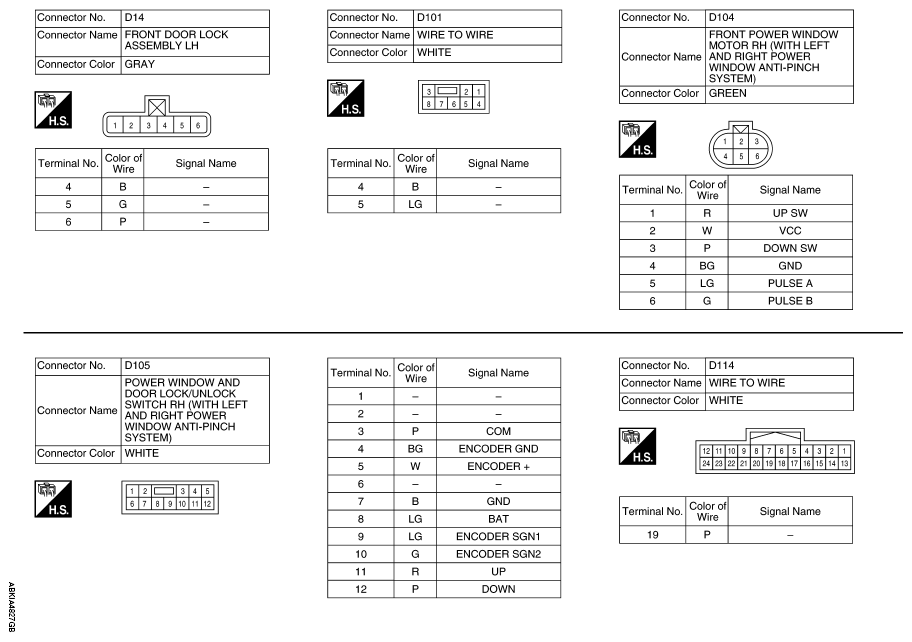

Fig 5: Power Window System Connector End Views With Left And Right Front Power Window Anti-Pinch (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

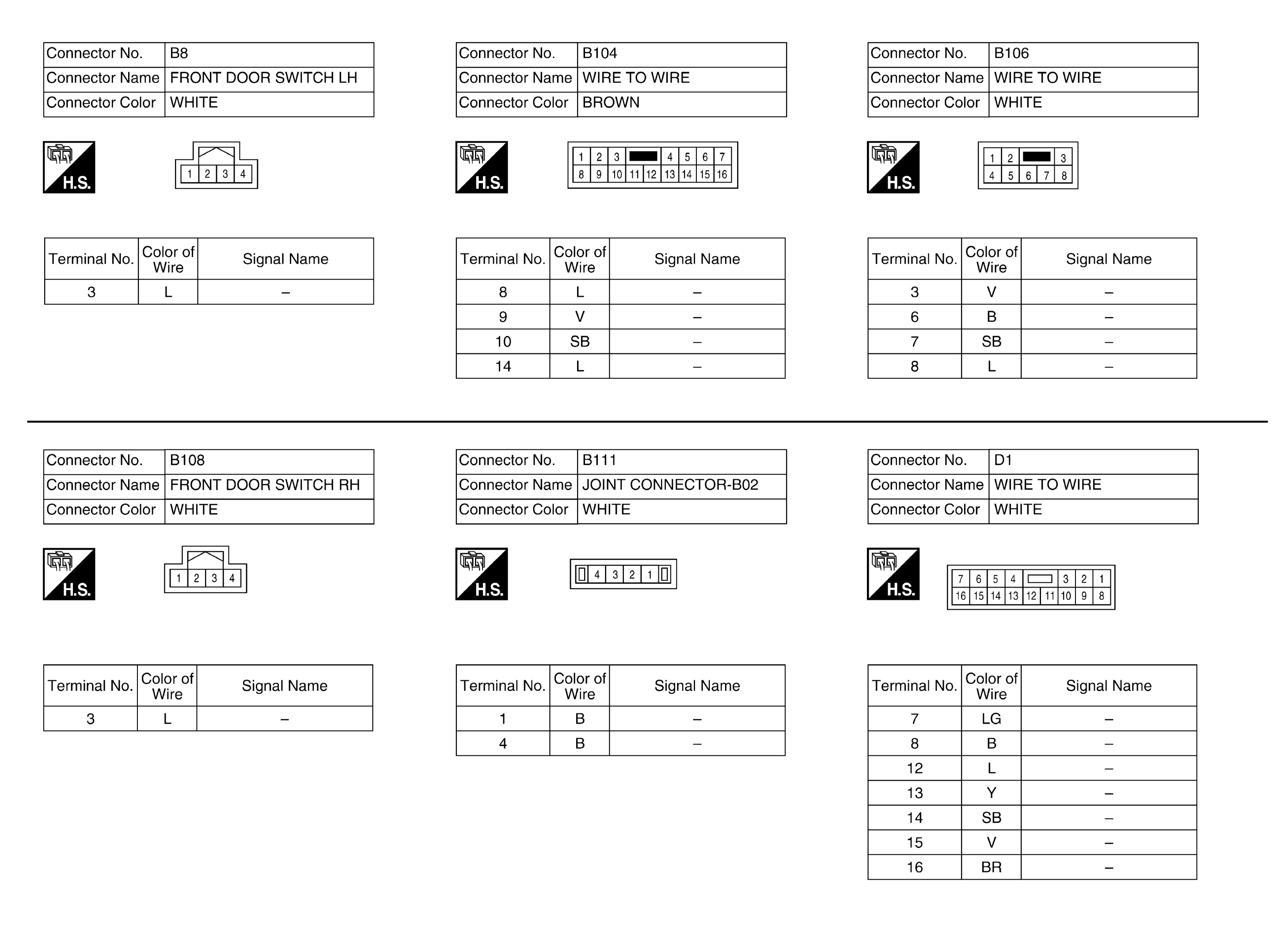

Fig 6: Power Window System Connector End Views With Left And Right Front Power Window Anti-Pinch (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

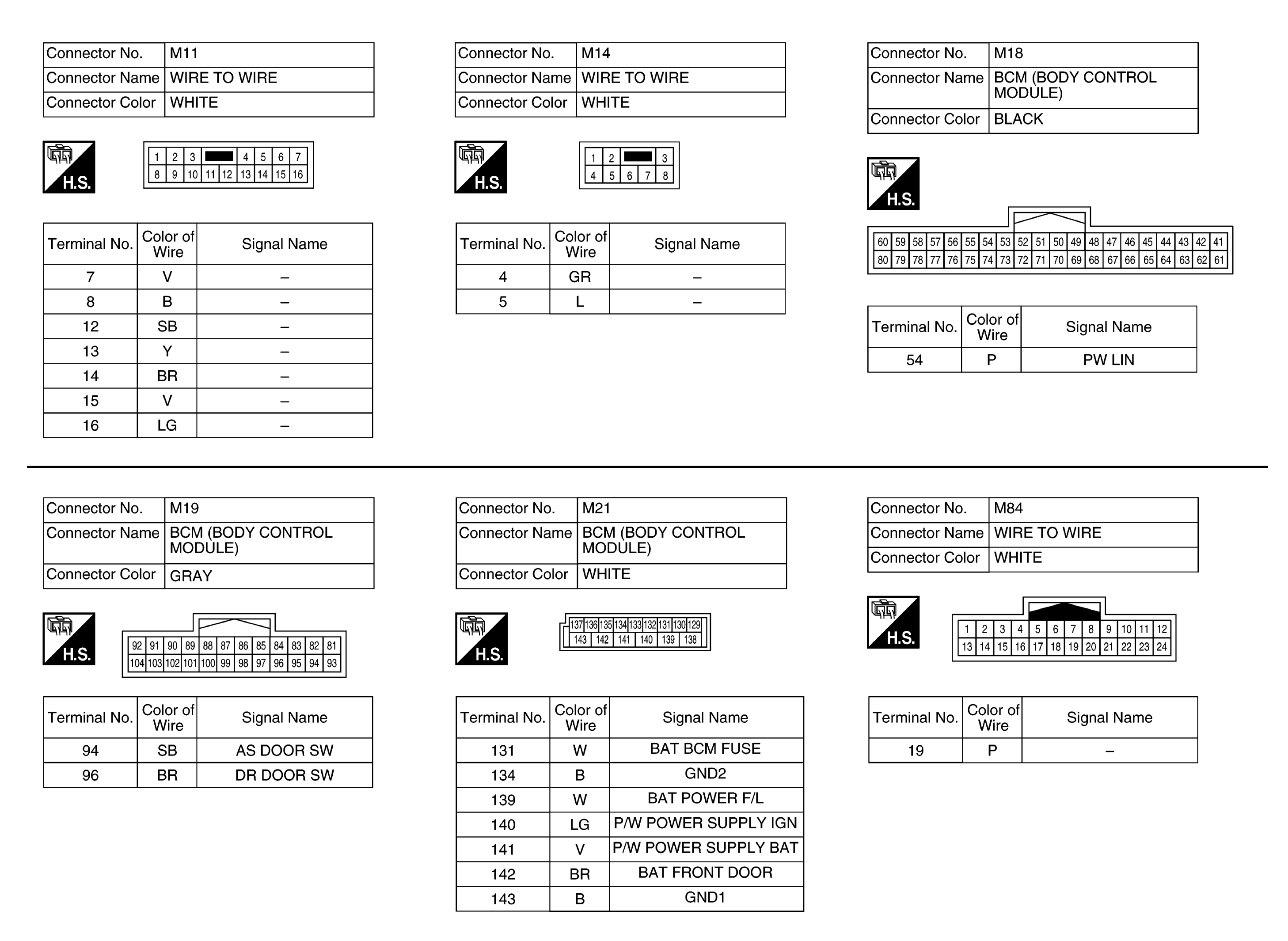

Fig 7: Power Window System Connector End Views With Left And Right Front Power Window Anti-Pinch (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
