Exploded View

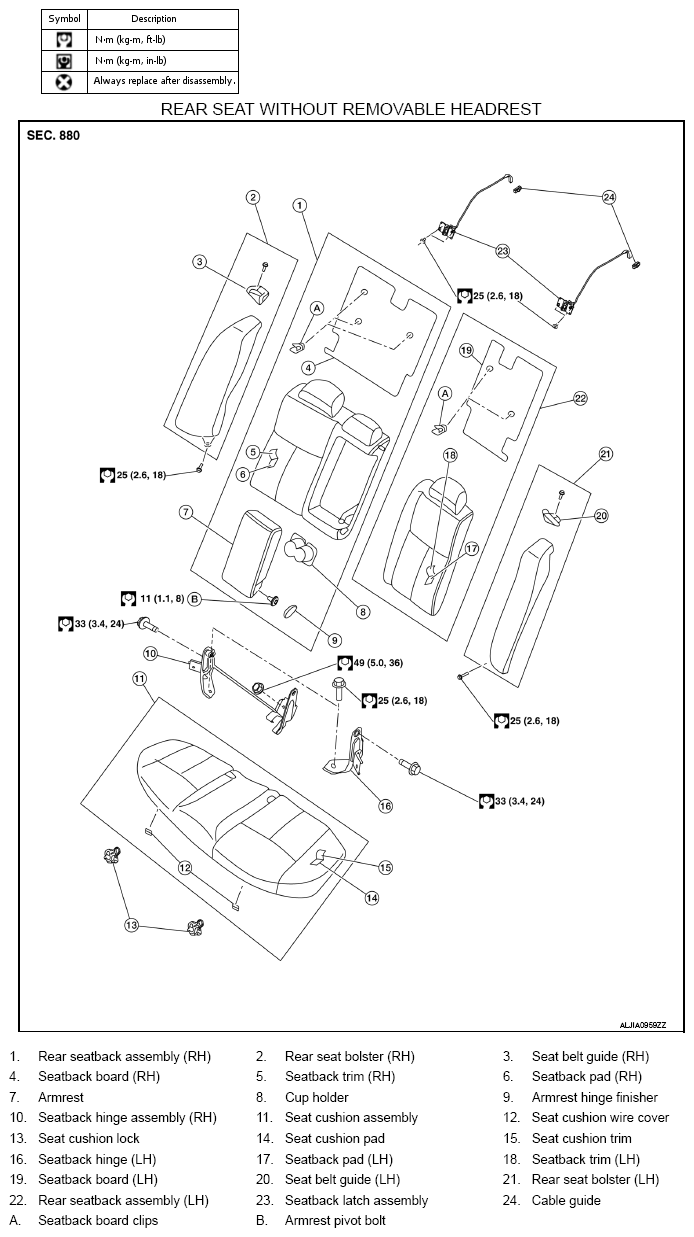

Fig 1: Exploded View Of Rear Seat Without Removable Headrest With Torque Specifications
G09141845Courtesy of NISSAN NORTH AMERICA, INC.

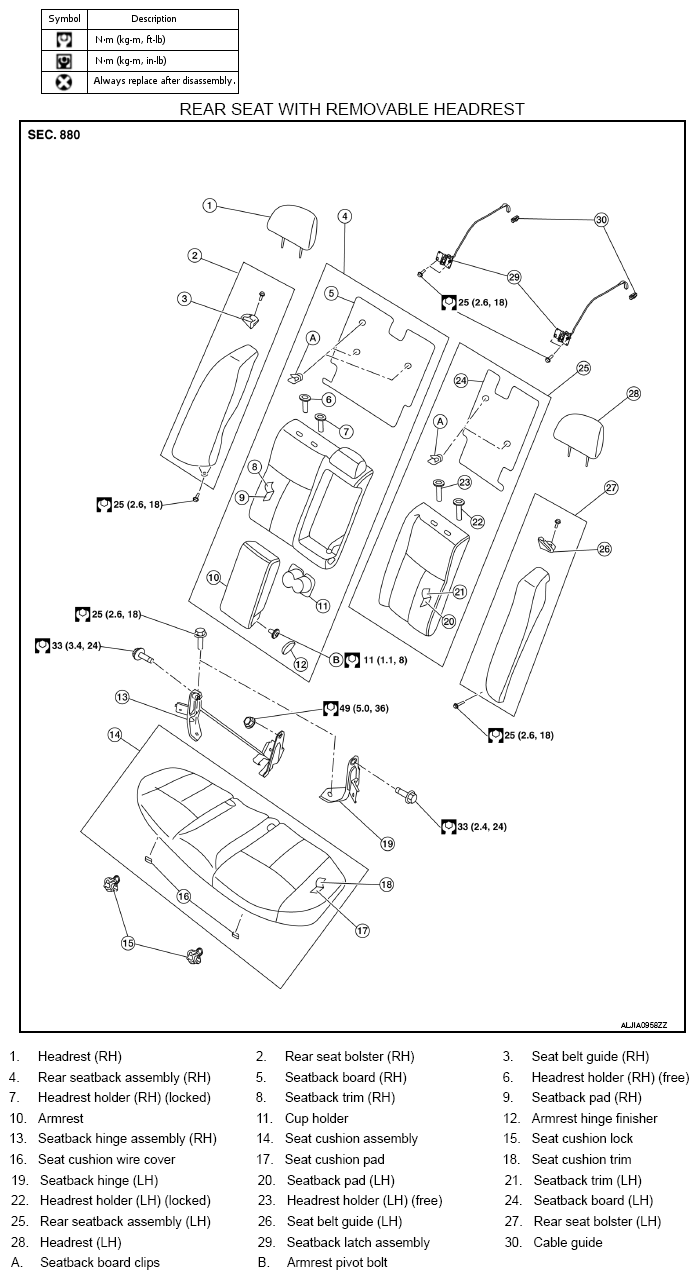

Fig 2: Exploded View Of Rear Seat With Removable Headrest With Torque Specifications
G09141846Courtesy of NISSAN NORTH AMERICA, INC.
