Headlining
>>
Exploded View
Exploded View

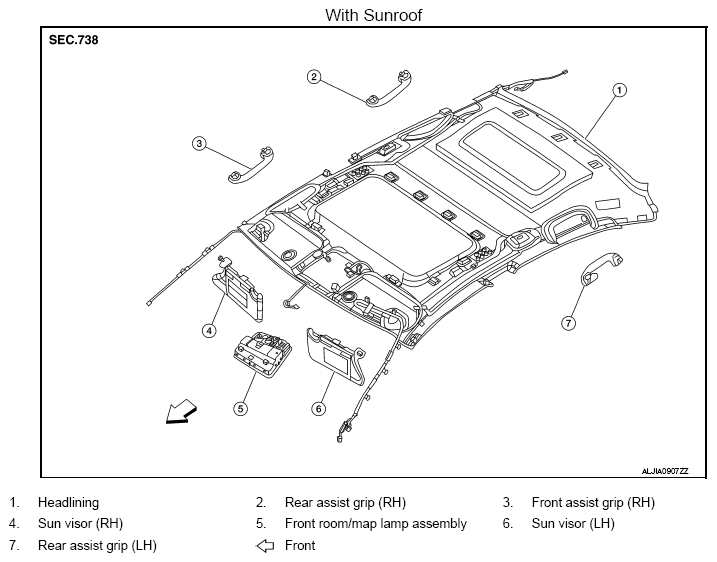

Fig 1: Exploded View Of Headlining (With Sunroof)
Courtesy of NISSAN NORTH AMERICA, INC.

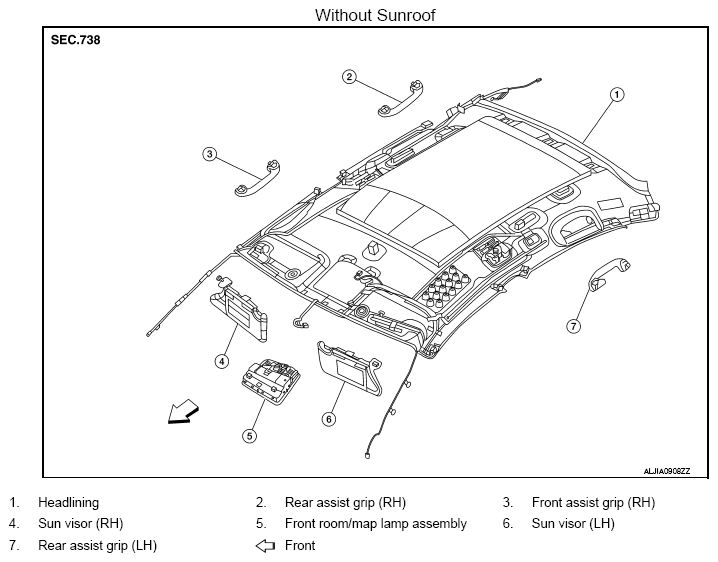

Fig 2: Exploded View Of Headlining (Without Sunroof)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
