Component Parts Location

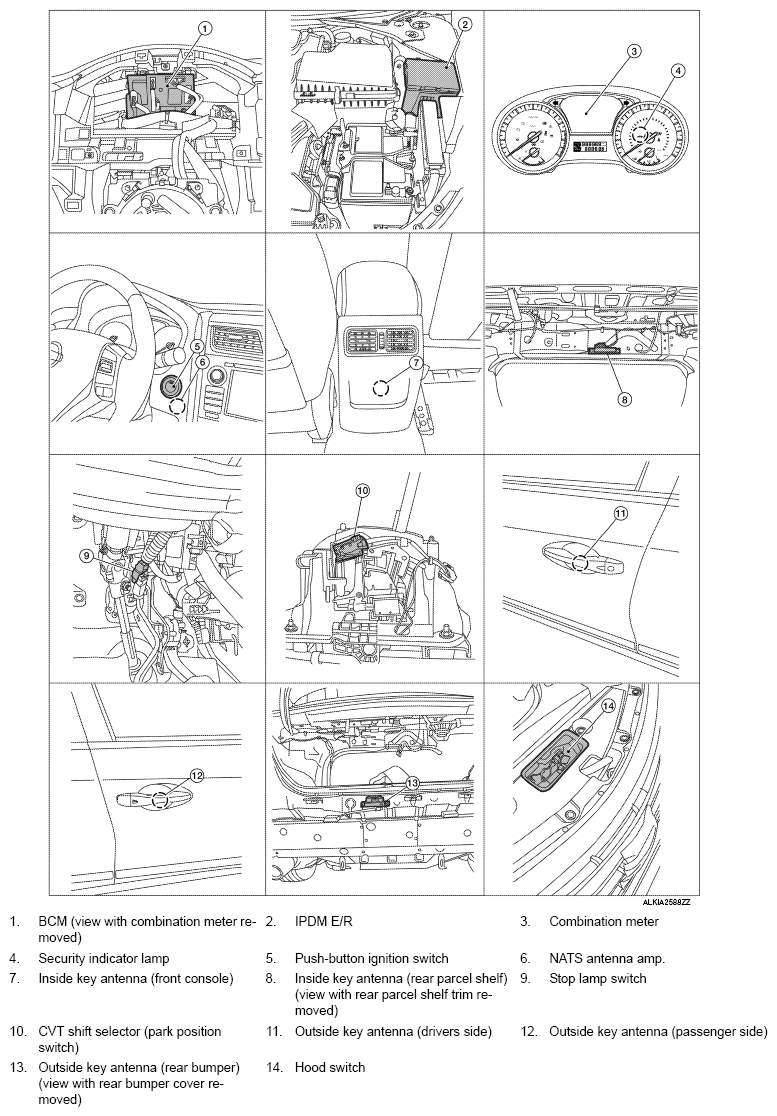

Fig 1: Identifying Vehicle Security System Component Parts Location (1 Of 2)
G09142095Courtesy of NISSAN NORTH AMERICA, INC.

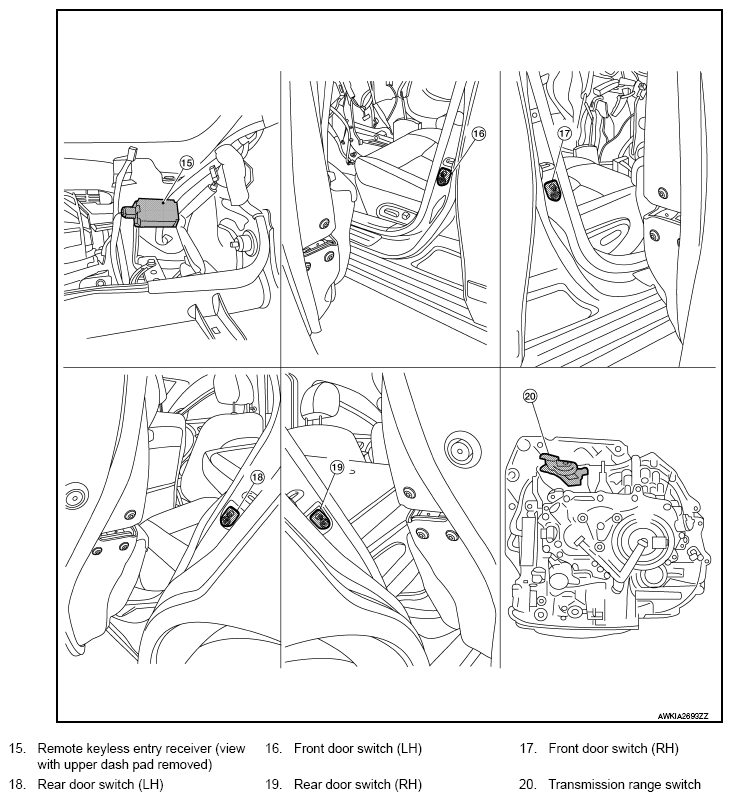

Fig 2: Identifying Vehicle Security System Component Parts Location (2 Of 2)
G09142096Courtesy of NISSAN NORTH AMERICA, INC.
