Removal and Installation: Removal

  1. Remove the trunk lid finisher. Refer to "TRUNK LID FINISHER: REMOVAL AND INSTALLATION ".
  2. Disconnect the harness connector from the rear view camera washer control unit.
  3. Remove the rear view camera washer control unit nuts (A).
  4. Remove the rear view camera washer control unit (1).

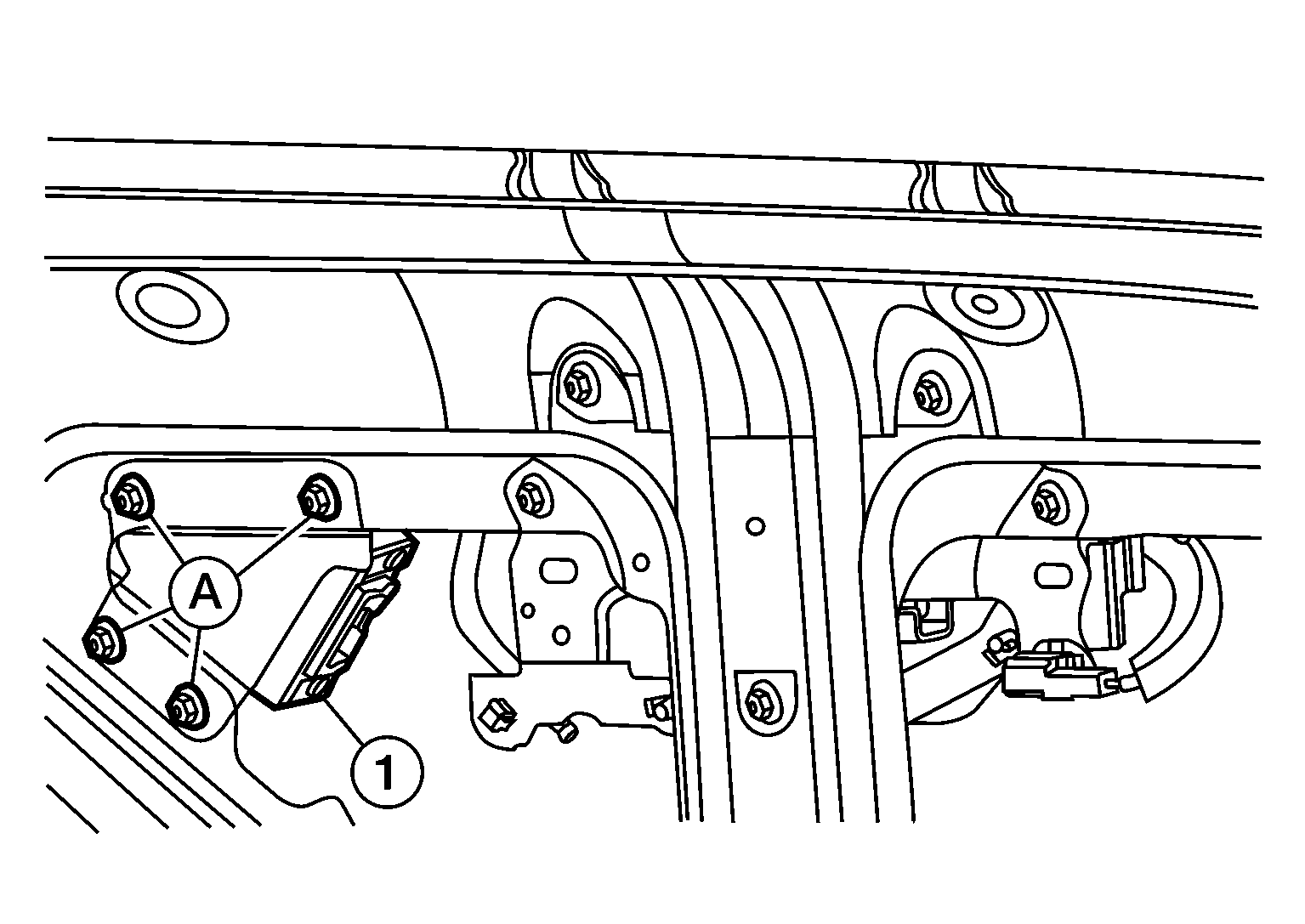

    Fig 1: Identifying Rear View Camera Washer Control Unit And Nuts
    G08687247Courtesy of NISSAN NORTH AMERICA, INC.
