Removal and Installation: Removal

  1. Disconnect the battery negative terminal. Refer to "REMOVAL AND INSTALLATION (BATTERY) ".
  2. Remove the center console assembly. Refer to "REMOVAL AND INSTALLATION ".
  3. Disconnect the harness connectors (B, C) from the ITS control unit (1).

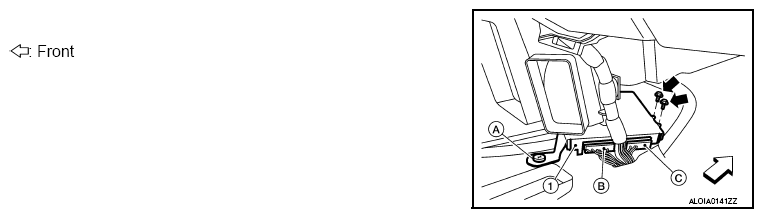

    Fig 1: Locating ITS Control Unit Bolts
    G09143392Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove bolts (<==) and plastic screw (A) that retain the ITS control unit (1) and remove.
