Symptom Table 2

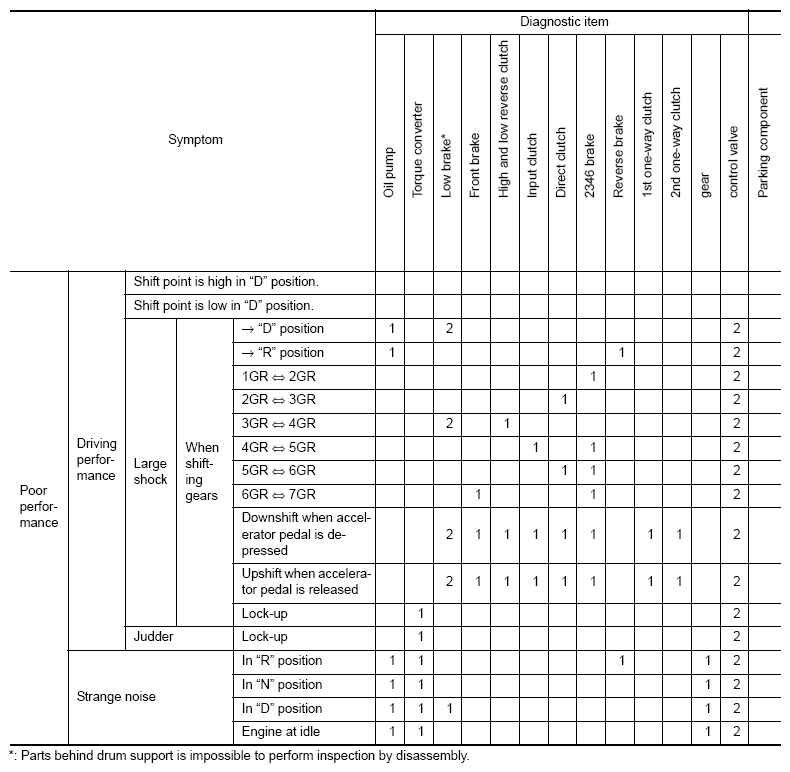

Fig 1: Symptoms Chart 2 (1 Of 5)
G09509283Courtesy of NISSAN NORTH AMERICA, INC.

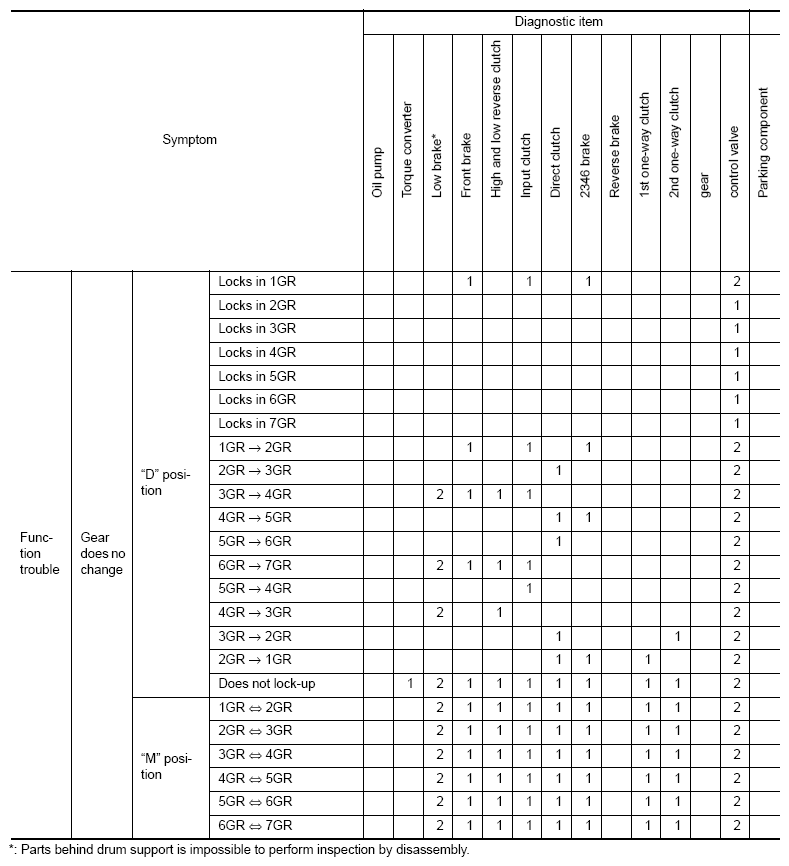

Fig 2: Symptoms Chart 2 (2 Of 5)
G09509284Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Symptoms Chart 2 (3 Of 5)
G09509285Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Symptoms Chart 2 (4 Of 5)
G09509286Courtesy of NISSAN NORTH AMERICA, INC.

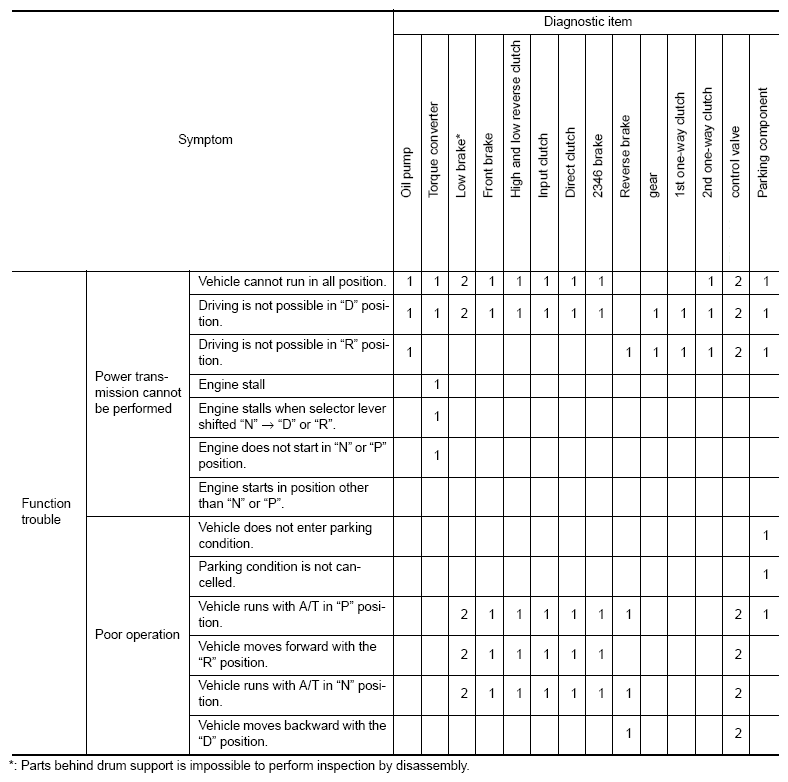

Fig 5: Symptoms Chart 2 (5 Of 5)
G09509287Courtesy of NISSAN NORTH AMERICA, INC.
