Symptom Table 1

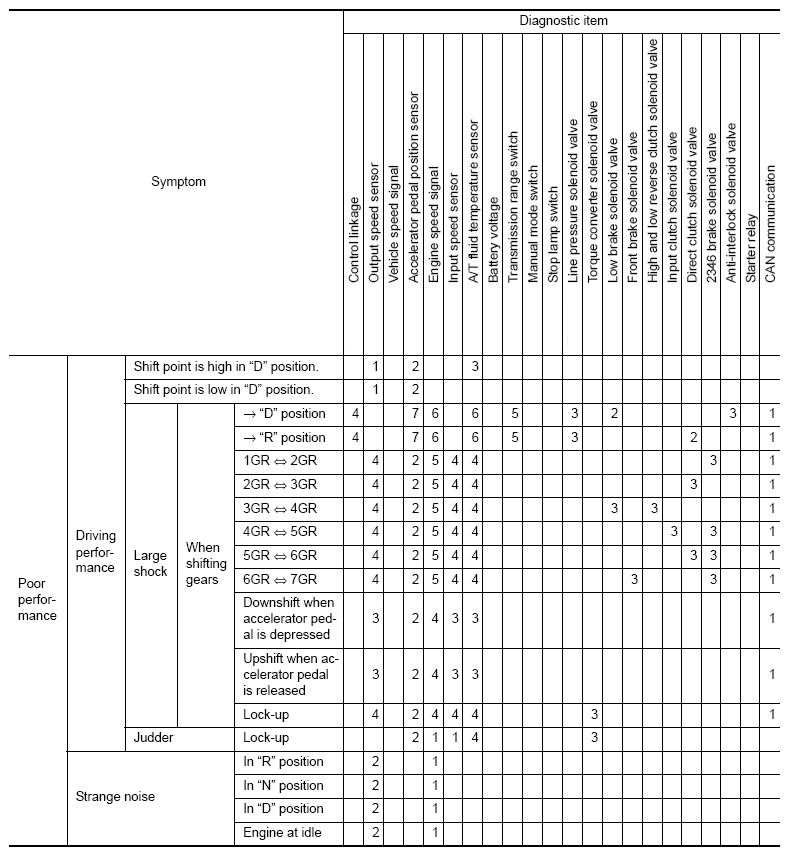

Fig 1: Symptoms Chart 1 (1 Of 5)
G09509278Courtesy of NISSAN NORTH AMERICA, INC.

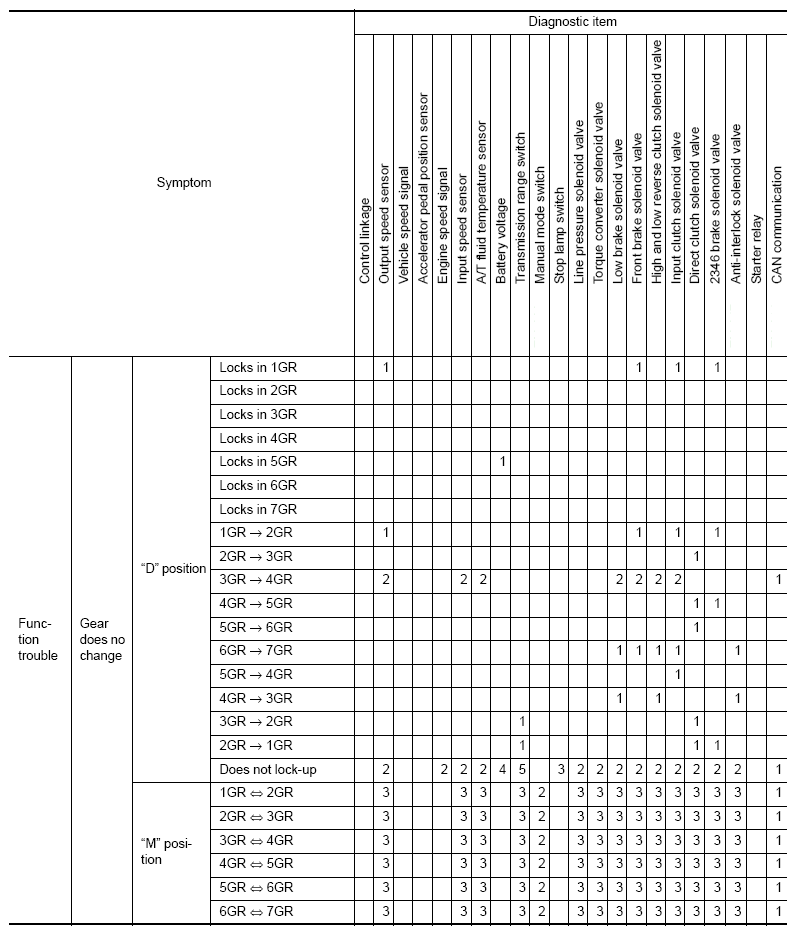

Fig 2: Symptoms Chart 1 (2 Of 5)
G09509279Courtesy of NISSAN NORTH AMERICA, INC.

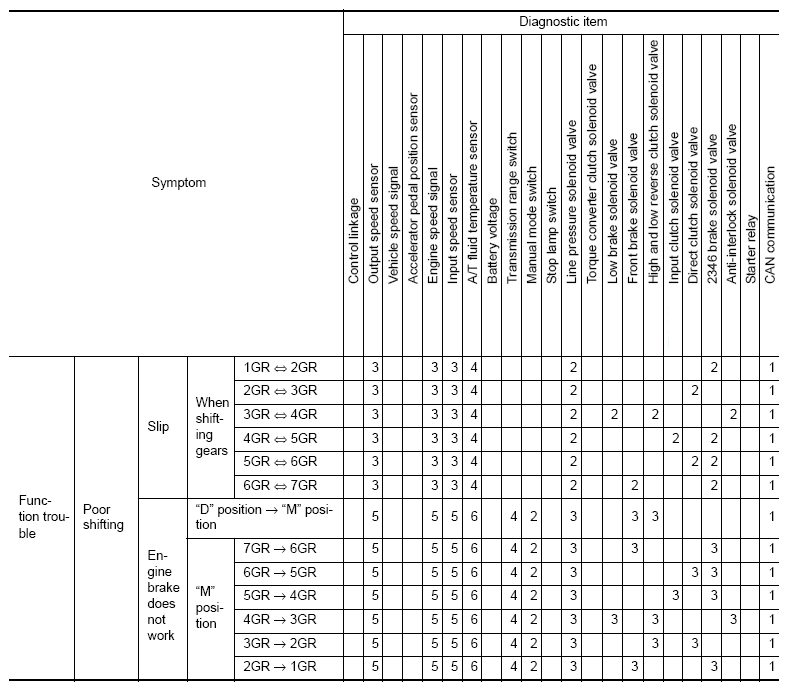

Fig 3: Symptoms Chart 1 (3 Of 5)
G09509280Courtesy of NISSAN NORTH AMERICA, INC.

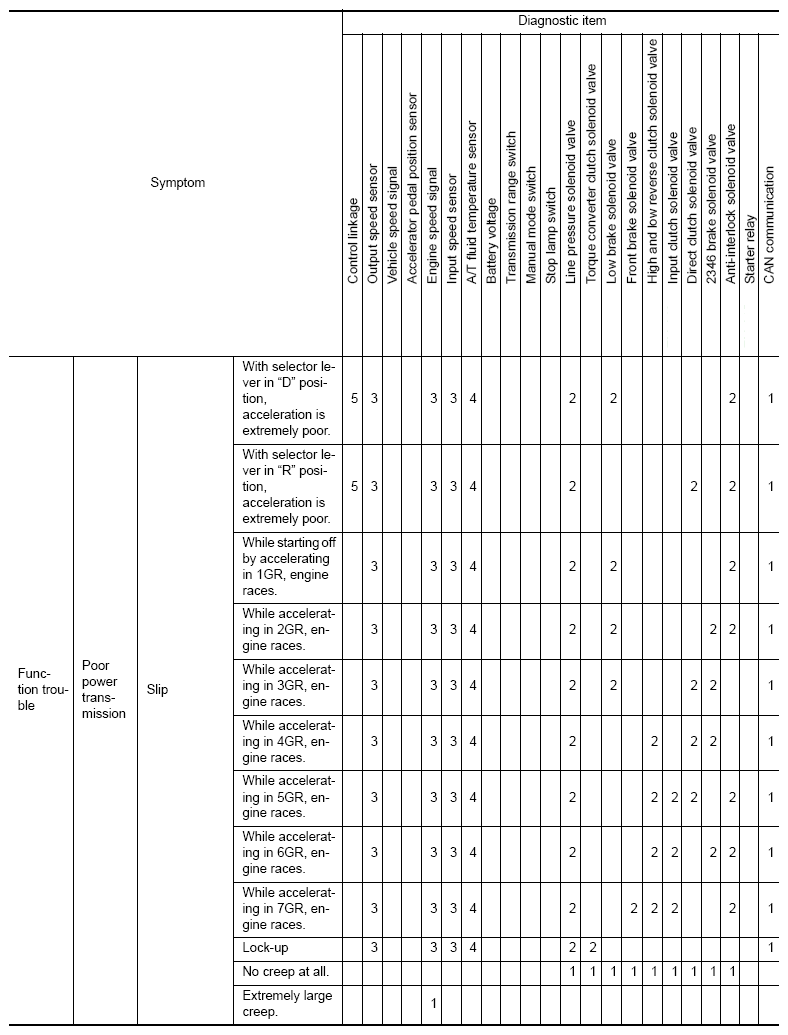

Fig 4: Symptoms Chart 1 (4 Of 5)
G09509281Courtesy of NISSAN NORTH AMERICA, INC.

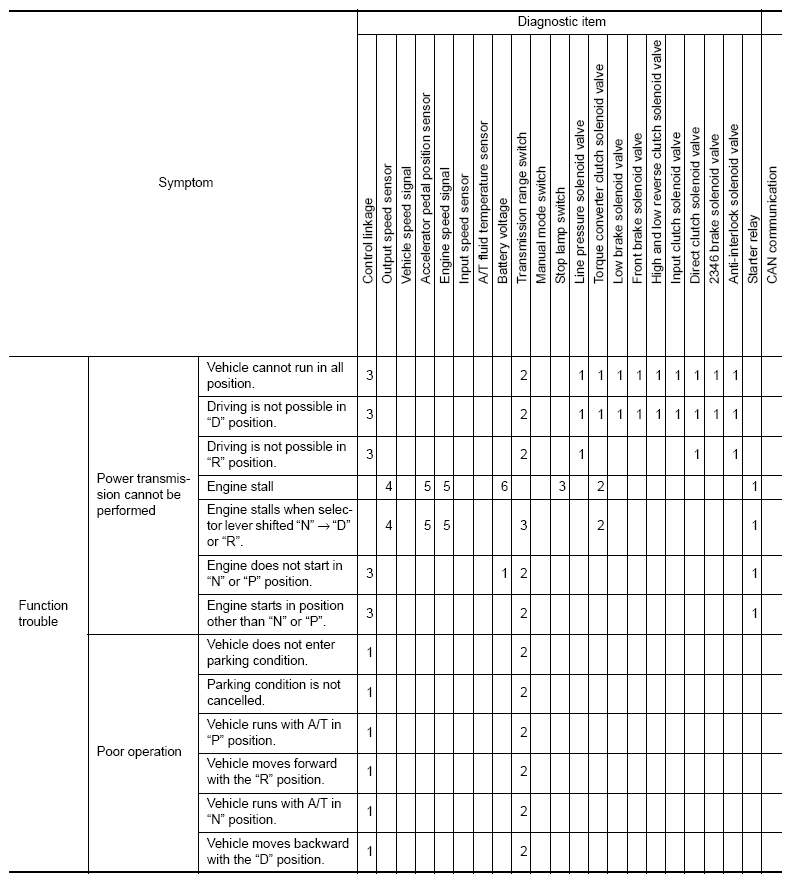

Fig 5: Symptoms Chart 1 (5 Of 5)
G09509282Courtesy of NISSAN NORTH AMERICA, INC.
