Exploded View

WARNING: This page is about a different car, the 2013 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

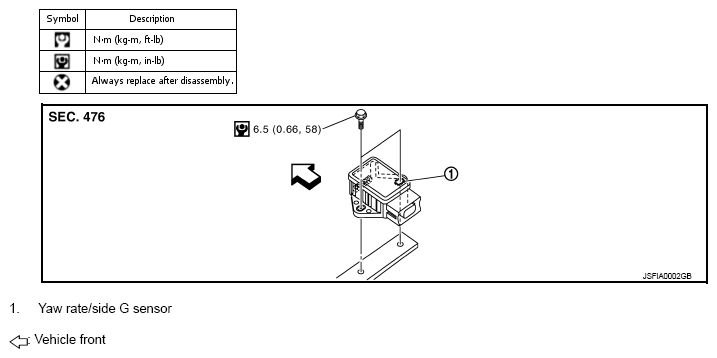

Fig 1: Yaw Rate/Side G Sensor With Torque Specifications
G08678371Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
