Exploded View

WARNING: This page is about a different car, the 2013 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

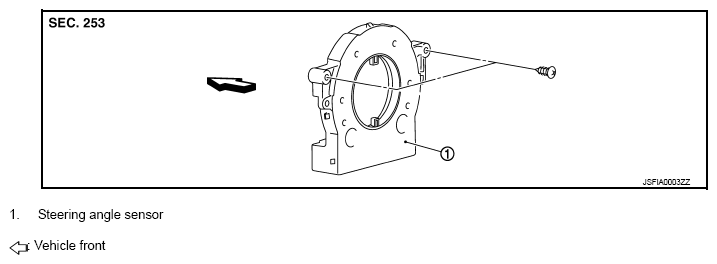

Fig 1: Steering Angle Sensor With Mounting Bolt
G08678372Courtesy of NISSAN NORTH AMERICA, INC.
