Oil Pump: Assembly
WARNING: This page is about a different car, the 2013 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.
Note the following, and assemble in the reverse order of disassembly.

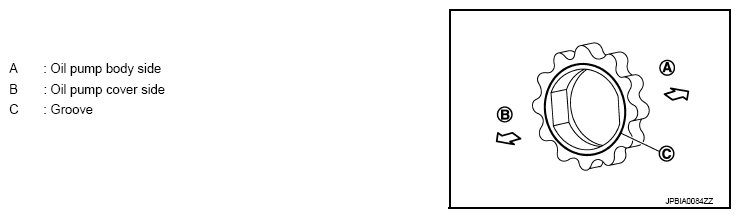

- Install oil pump inner rotor with the groove faced to oil pump cover side.
Courtesy of NISSAN NORTH AMERICA, INC.
