Exploded View: Disassembly

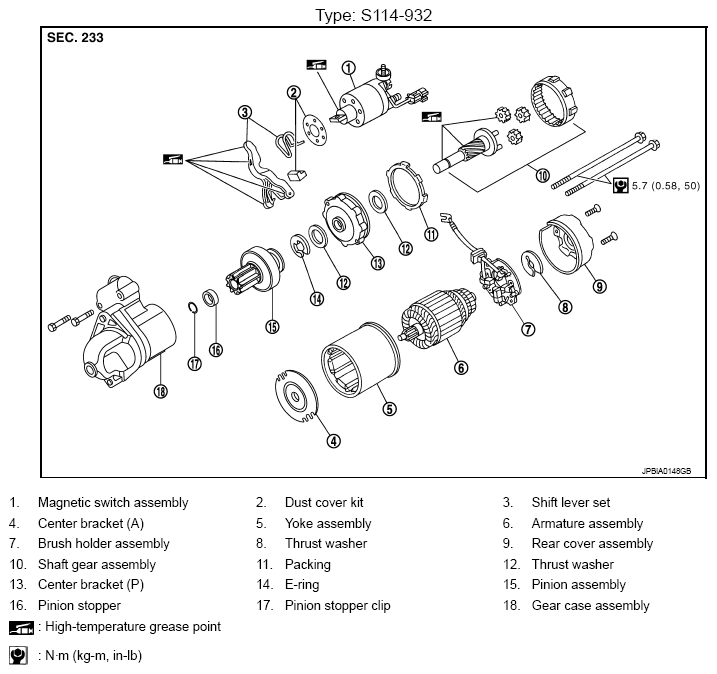

Fig 1: Disassembled View Of Starter Motor (Type - S114-932) With Torque Specifications

G09507603

Courtesy of NISSAN NORTH AMERICA, INC.
